WiFi 6E AX5400
WiFi 6E AX5400
Model Number: AX5400
Manufacture: NETELY INC
Compatible Devices: Desktop
Connector Interface: PCIe 2.0 X1
Wi-Fi Standard: IEEE 802.11AX WiFi 6E

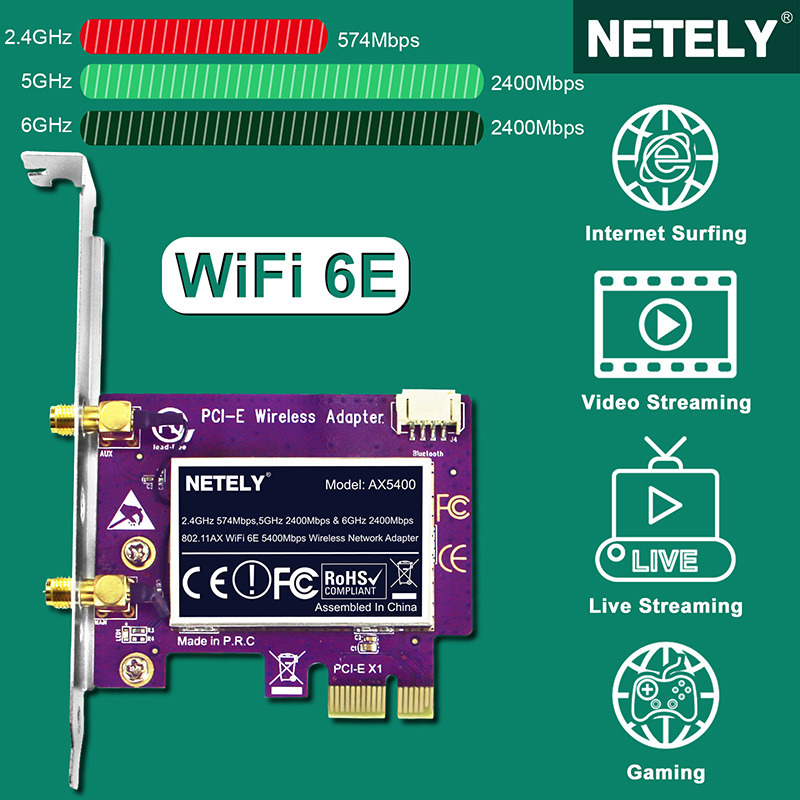

Wi-Fi Speed: 2.4GHz 574Mbps,5GHz 2400Mbps,6GHz 2400Mbps
Compatible Systems: 1.Windows 10, 11 64-bit need to install driver
(Support Intel’s official driver) 3.Support Linux kernel 5.1+ systems (Need compile)
NETELY 802.11AX WiFi 6E 5400Mbps PCIE WiFi Adapter for Windows 10/11 64bit Desktop PCs, 2.4GHz 574Mbps, 5GHz 2400Mbps & 6GHz 2400Mbps (AX5400)

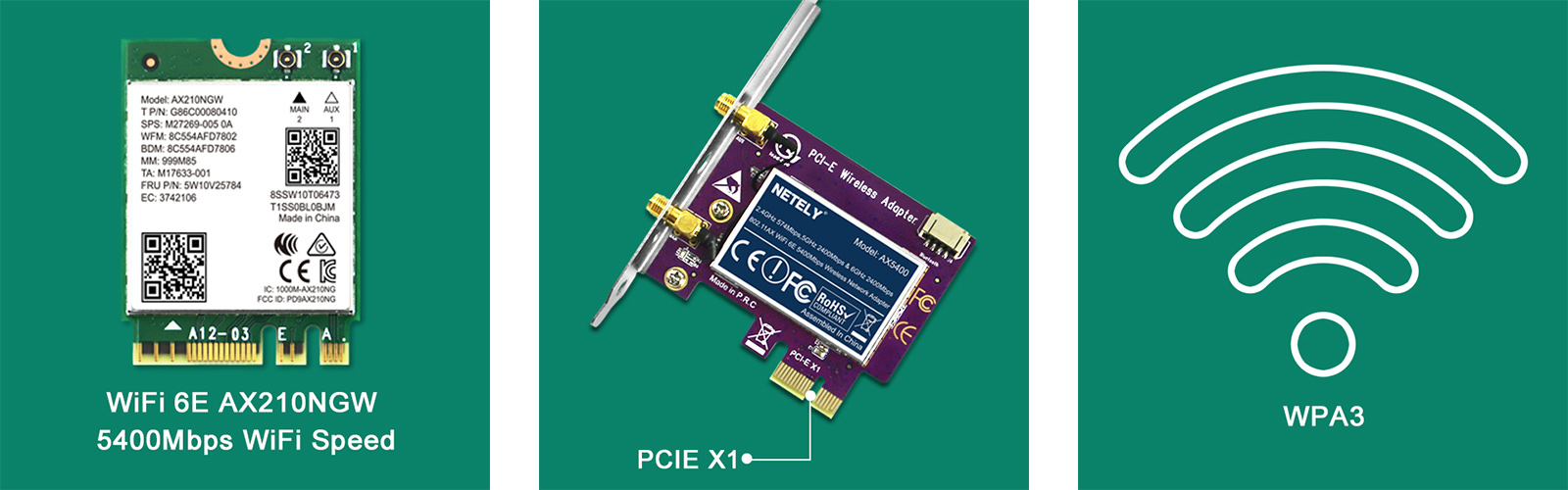

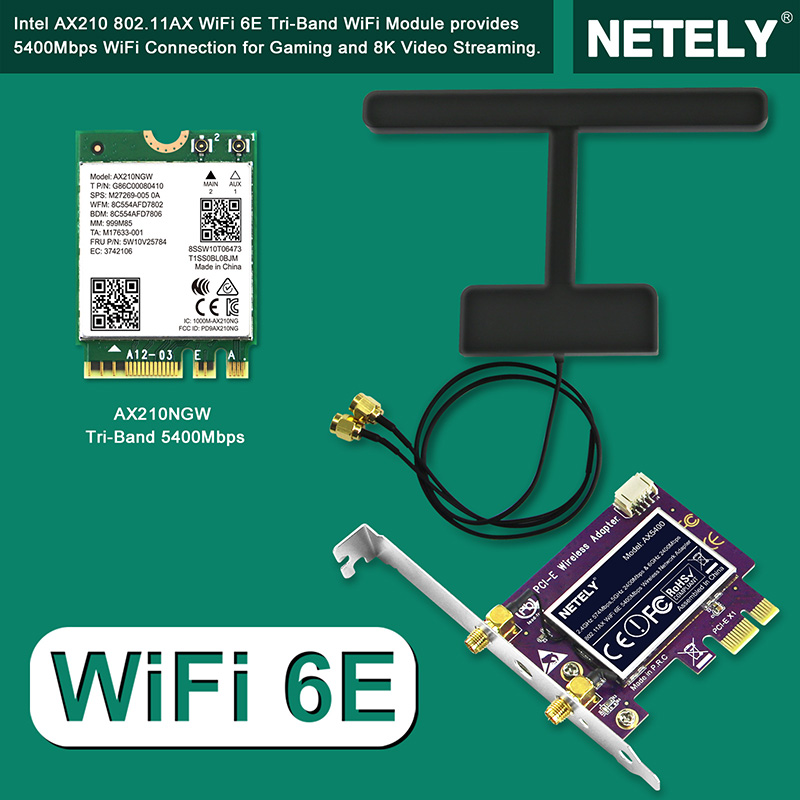

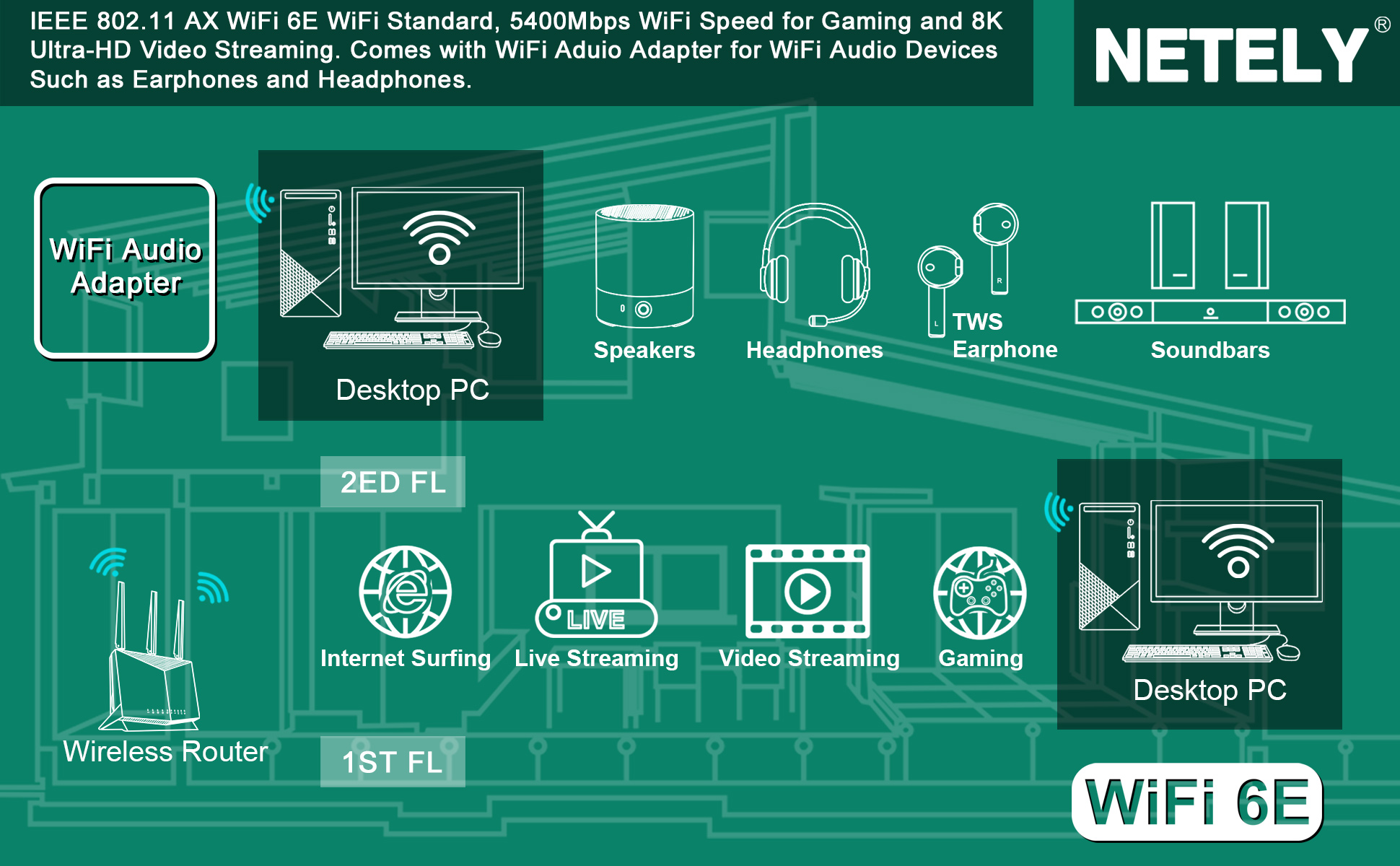

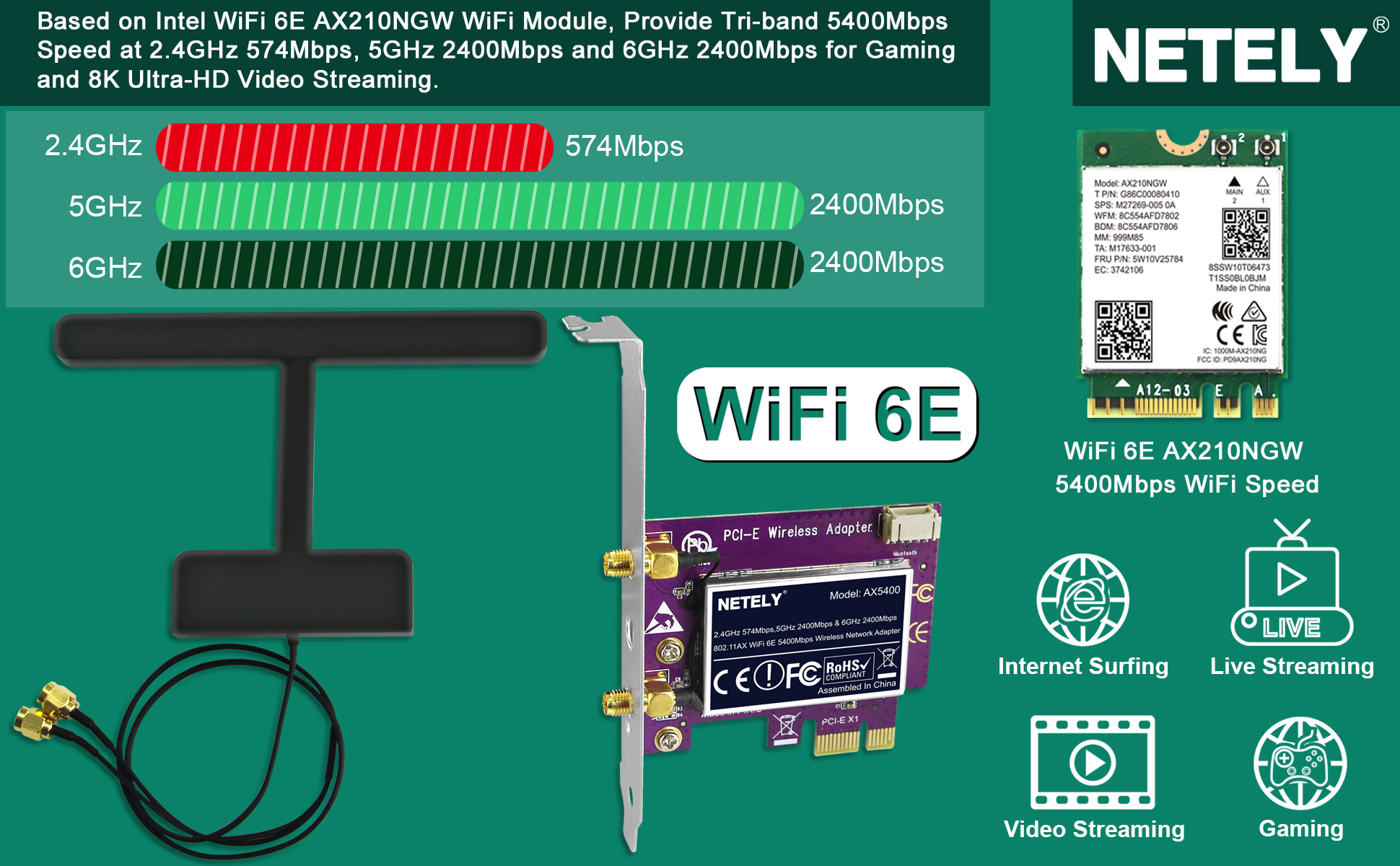

NETELY 802.11AX WiFi 6E AX5400 is a PCIE X1 interface WiFi Adapter. It is based on Intel’s WiFi 6E AX210NGW WiFi module. It will provide IEEE 802.11AX WiFi 6E 2X2 MU-MIMO 5400Mbps (2.4GHz 574Mbps, 5GHz 2400Mbps & 6GHz 2400Mbps) total bandwidth WiFi connection on desktop PCs for Online Gaming, 8K Ultra-HD video streaming, internet surfing and online video calls. It comes with the WiFi audio adapter for WiFi headphone, WiFi earphone, WiFi soundbars and WiFi speakers. It supports the latest WiFi encryption WPA3 will protect user’s network privacy.
Product Features:
1. Add IEEE 802.11AX WiFi 6E 5400Mbps (2.4GHz 574Mbps, 5GHz 2400Mbps and 6GHz 2400Mbps) tri-band PCIE wireless network adapter on desktop PCs for large online gaming, 8K Ultra-HD video streaming, internet surfing and online video calls.
2. Compatible systems with Windows 10, 11 64bit (need to install driver). Supports Linux kernel 5.1+ systems (need compile). NOT for other systems.
3. Model: AX5400, Hardware Interface: PCIE X1, Major Chipset: Intel WiFi 6E AX210NGW, Peak Speed: 2.4GH 574Mbps, 5GHz 2400Mbps,6GHz 2400Mbps.
4. WiFi Standard: IEEE 802.11 AX WiFi 6E will backward compatible with 802.11 AC/N/G/B/A, WiFi Encryption: 64bit and 128-bit WPA3, WEP, AES-CCMP and TKIP.
5. Come with WiFi audio adapter for WiFi headset, WiFi earphones, WiFi soundbars and WiFi speakers.
6. WARNING: User must check if PCs have one empty PCIE slot for this PCIE WiFi card before purchase.
Technical Specifications:
1. Add IEEE 802.11AX WiFi 6E 5400Mbps (2.4GHz 574Mbps, 5GHz 2400Mbps and 6GHz 2400Mbps) tri-band PCIE wireless network adapter on desktop PCs.
2. Compatible with Windows 10, 11 64bit (need to install driver). Supports Linux kernel 5.1+ systems (need compile). NOT for other systems.
3. Select Intel WiFi 6E AX210NGW major chipset. Take in ODMA and 1024QAM technology, will provide more bandwidth and enhance WiFi signal stablity.

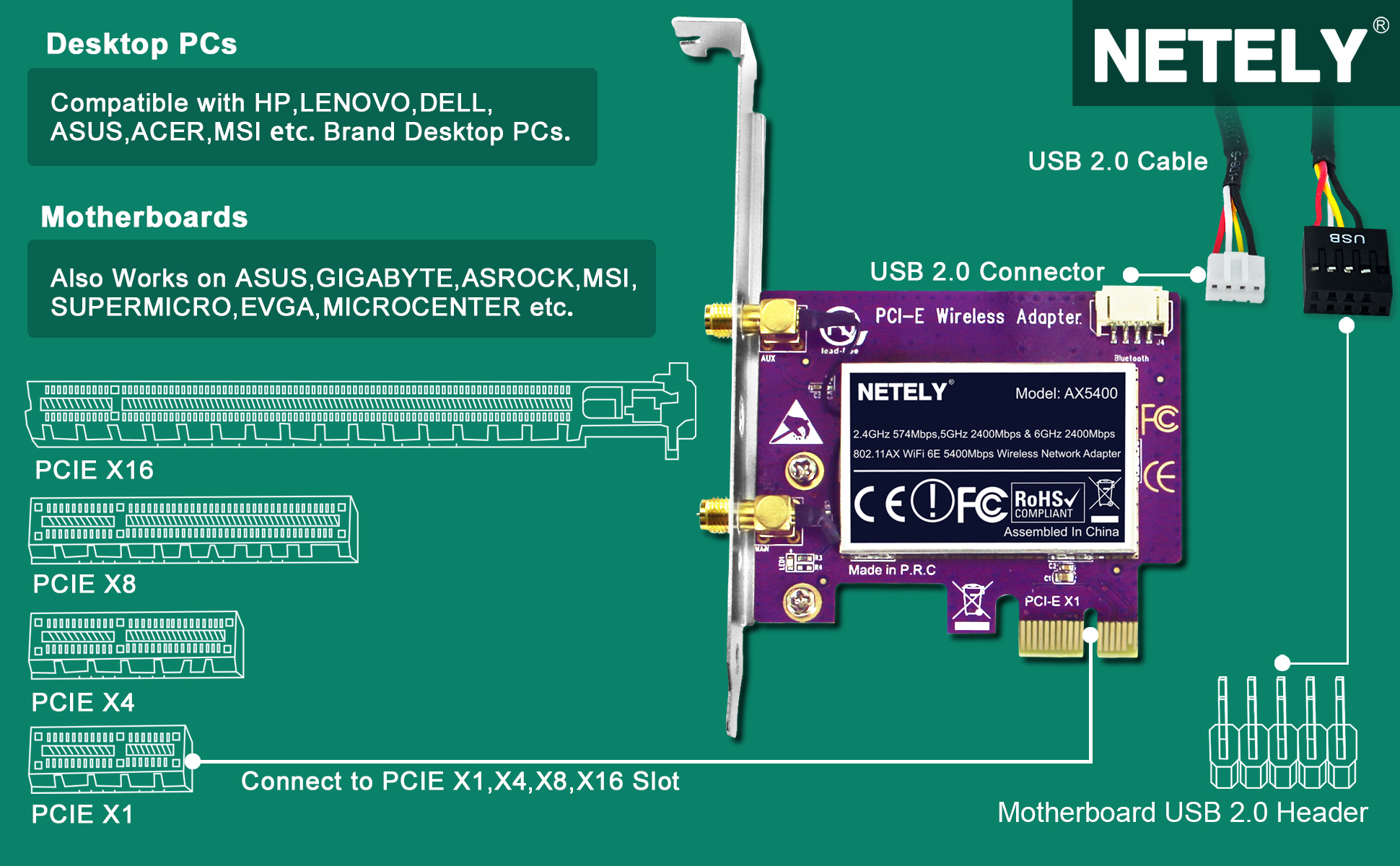

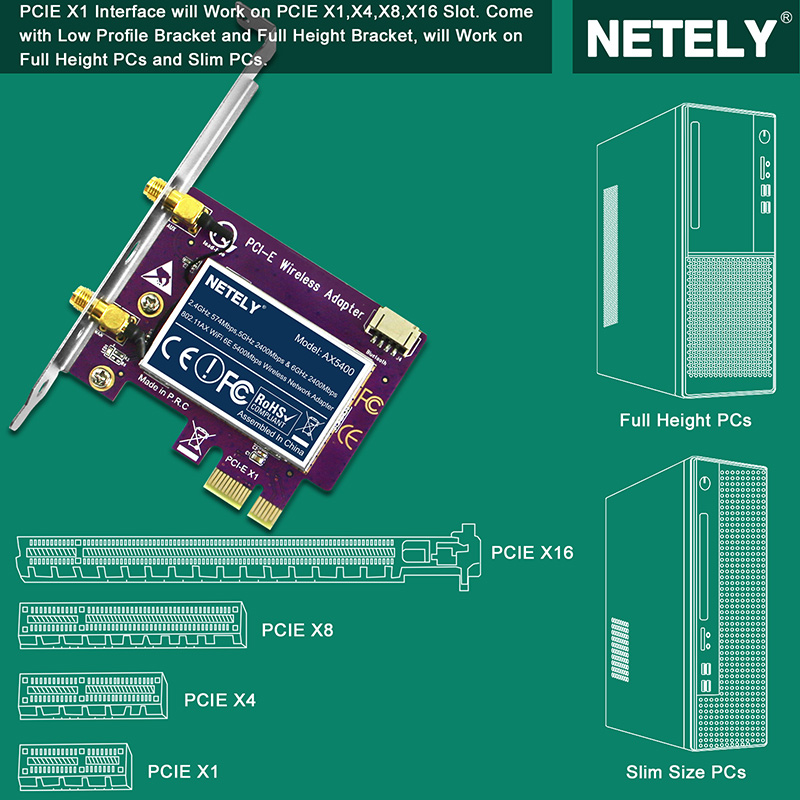

1. PCI Express 2.0 X1 degsin will compatible with PCIE 1.0,2.0 and 3.0 and work on PCIE X1,X2,X4,X8,X16 slot.
2. The full height bracket and the low profile bracket will work on full size and slim size PCs or servers respectively.
3. Comply with 64bit and 128-bit WEP, AES-CCMP, TKIP and WPA3 WiFi encryption protecting users' privacy against cyber-attacks.
NETELY 802.11AX WiFi 6E AX5400 is a PCIE X1 interface WiFi Adapter. It is based on Intel’s WiFi 6E AX210NGW WiFi module. It will provide IEEE 802.11AX WiFi 6E 2X2 MU-MIMO 5400Mbps (2.4GHz 574Mbps, 5GHz 2400Mbps & 6GHz 2400Mbps) total bandwidth WiFi connection on desktop PCs for Online Gaming, 8K Ultra-HD video streaming, internet surfing and online video calls. It comes with the WiFi audio adapter for WiFi headphone, WiFi earphone, WiFi soundbars and WiFi speakers. It supports the latest WiFi encryption WPA3 will protect user’s network privacy.
Tech Specs:
1. Model: AX5400
2. Major Chipset: Intel WiFi 6E AX210NGW
3. Target Users: Windows 10/11 64bit system Desktop PCs
4. Peak Speed: 2.4GHz 574Mbps, 5GHz 2400Mbps, 6GHz 2400Mbps
5. Hardware Interface: PCIE X1, supports PCIE X1, X2, X4, X8, X16 slot
6. WiFi Encryption: 64bit and 128-bit WEP, AES-CCMP, TKIP and WPA3
7. Main Bus Type: PCI Express bus 2.0, compatible with PCIE 4.0,3.0,2.0,1.1 standard

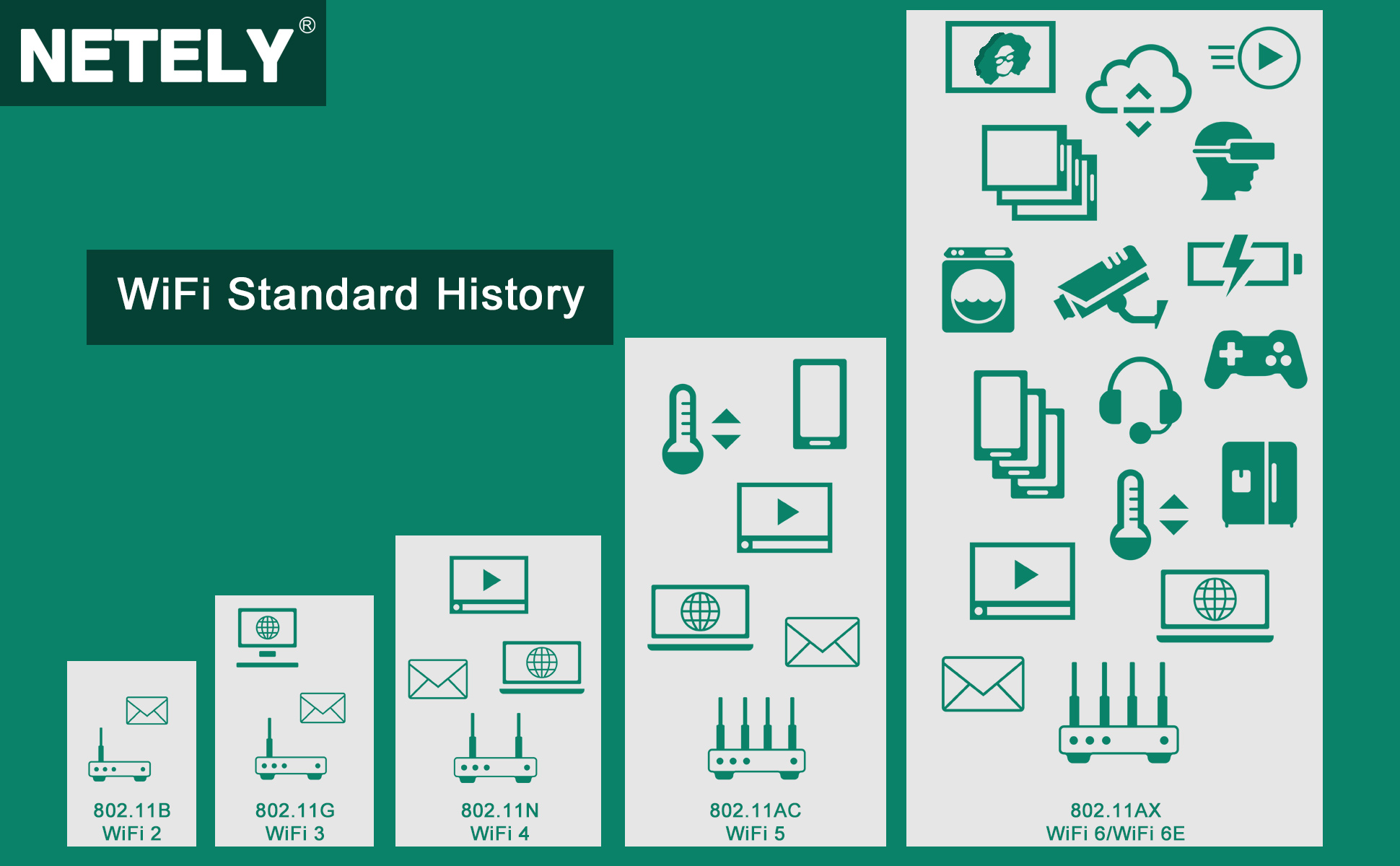

8. WiFi Standard: IEEE 802.11AX WiFi 6E, backward compatible with 802.11 AC/N/G/B/A
9. Low profile bracket and full height bracket in the package will supports full height and slim size PCs

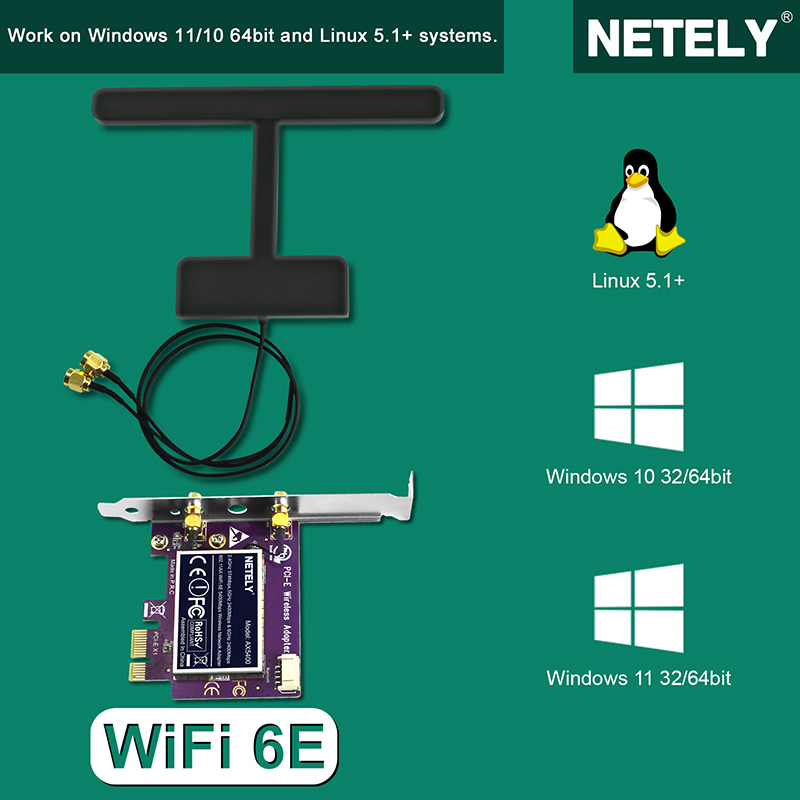

Compatible System:
1.Windows 10, 11 64bit need to install driver, supports Intel’s official driver.
2.Supports Linux kernel 5.1+ systems (Need compile), supports Intel’s official driver.

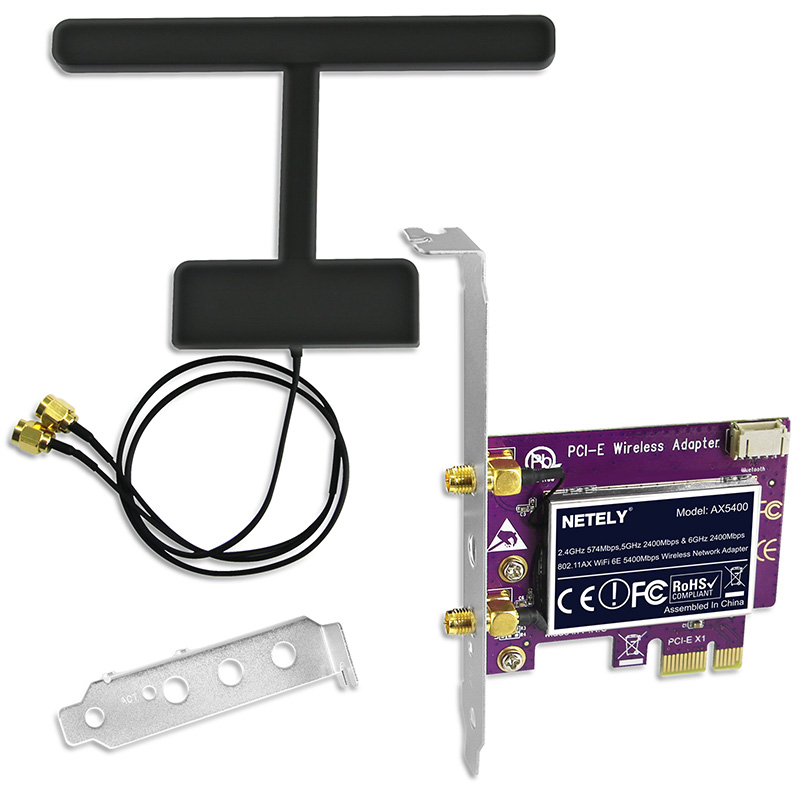

Package List: 1X AX5400 1X Driver CD 1X User Manual 1X Mount Screw 1X WiFi Antenna Kit 1X Low Profile Bracket
