NET-N900

Buy at Amazon
Cooperation

NET-N900

Model: NET-N900

Manufacture: NETELY INC

Compatible Devices: Desktop

Connector Interface: PCIe 2.0 X1

Wi-Fi Standard: IEEE 802.11a/b/g/n

Wi-Fi Speed: 2.4GHz 450Mbps, 5GHz 450Mbps

Compatible System: 1. Linux System:ATH9K Driver

2. Windows 10,Windows 8.1,Windows 8 (32/64bit) no need to install driver.

3. Windows Server/Windows XP/Windows 7(32/64bits)need to install driver.

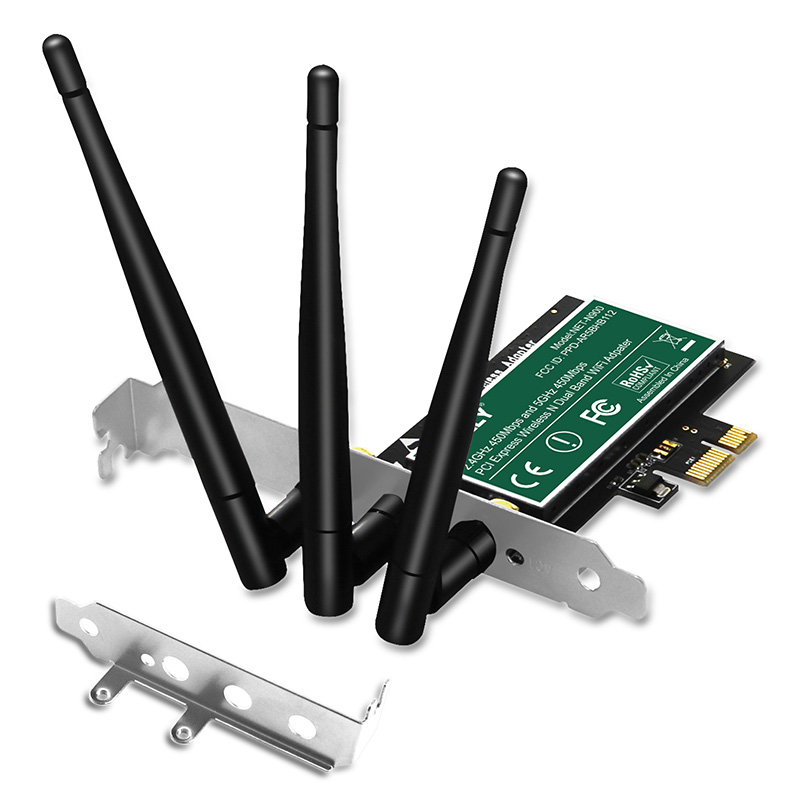

NETELY Wireless Dual Band N900 3x3 MIMO PCI Express(PCI-E Wi-Fi Adapter for PCs or Working Stations-PCIE Wi-Fi Card-PCIE Wireless Adapter-Qualcomm Atheros Wireless Network Adapter(NET-N900)

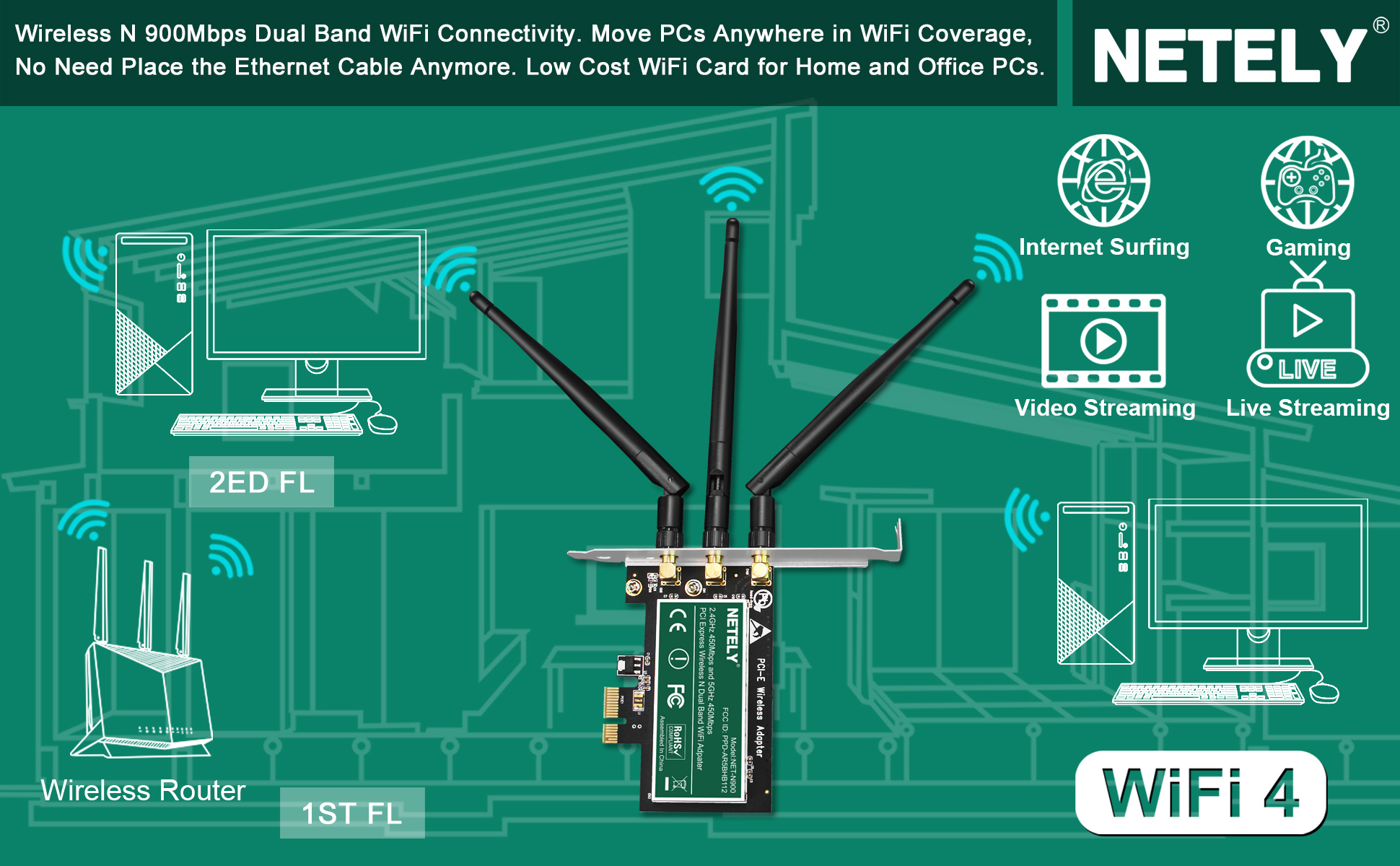

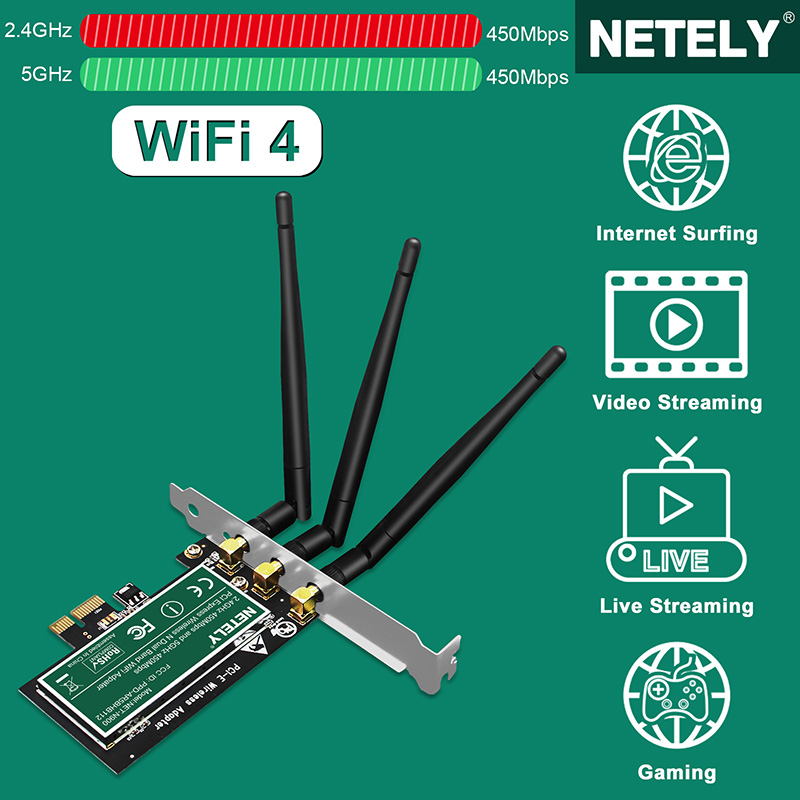

NETELY NET-N900 is a wireless N Dual Band 3x3 MINO (3-Stream) High Performance PCI Express (PCI-E) Wi-Fi Adapter. Select by Qualcomm Atheros AR938X 3T3R MIMO platform high power Wi-Fi solution improve wireless connection stability. With added power amplifier on each antenna ports and 6dBi X3 external antennas make sure wireless networkreceiving(RX) or transmitting(TX) in great condition. PCs and Working Stations will get a 450Mbps max throughput speed on 2.4GHz and 5GHz in long range, few losses for video streaming, online Surfing, online gaming, VOIP calls etc.


Product Features:

1. Wireless N Network Card: NET-N900 is a wireless N Dual Band 3x3 MIMO (3-Stream) High Performances PCI Express (PCI-E) Wi-Fi Adapter. Offers max 450Mbps data speed throughput on 2.4GHz and 5GHz in long range for wireless connection on desktop computers and working stations mainly used for online surfing, video streaming, online gaming, VOIP calls etc.

2. Qualcomm Atheros Wireless Adapter: NET-N900 was based on Qualcomm Atheros AR938X 3T3R MIMO platform high power Wi-Fi solution. Was Added power amplifier on each antenna ports make sure TX and RX works in long range high speed (home use level).Was Packed with 6dBi X3 antennas to help device receiving or transmitting stable wireless signal in high performance.

3. Stable Connection Wi-Fi Card: Power consumption: 3.0Watts. Operating Channel: 2.4GHz and 5GHz. 1. Wireless Adapter Mode: Provide Receive Sensitivity: HT40/MCS-7 -68 dBm/MCS-0 -82 dBm on board (Per Chain) +6dBi X3 external equipped antennas offers excellent wireless reception in long range. 2. Wireless AP Mode: Allow PCs get amplified 18dBm X3 Transmit output (on board)+6dBi X3 external antennas (added). Keep all connected Wi-Fi sharing device works in high speed and better stability.

4. Better Compatible Wi-Fi Adapter: Fully support IEEE 802.11 b/g/n/ac wireless Router, AP, ISP etc. Comply with WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES).Supports spatial multiplexing, cycle-delay diversity, low-density parity check, maximal ratio combining , space time block code, and Tx beamforming. Seamless works on PCI-E 1.X/2.X/3.X standard, X1/X4/X8/X16 slot. Perfect fits on mini PC case and standard PC case with packed low profile and full height bracket.

Technical Specifications:

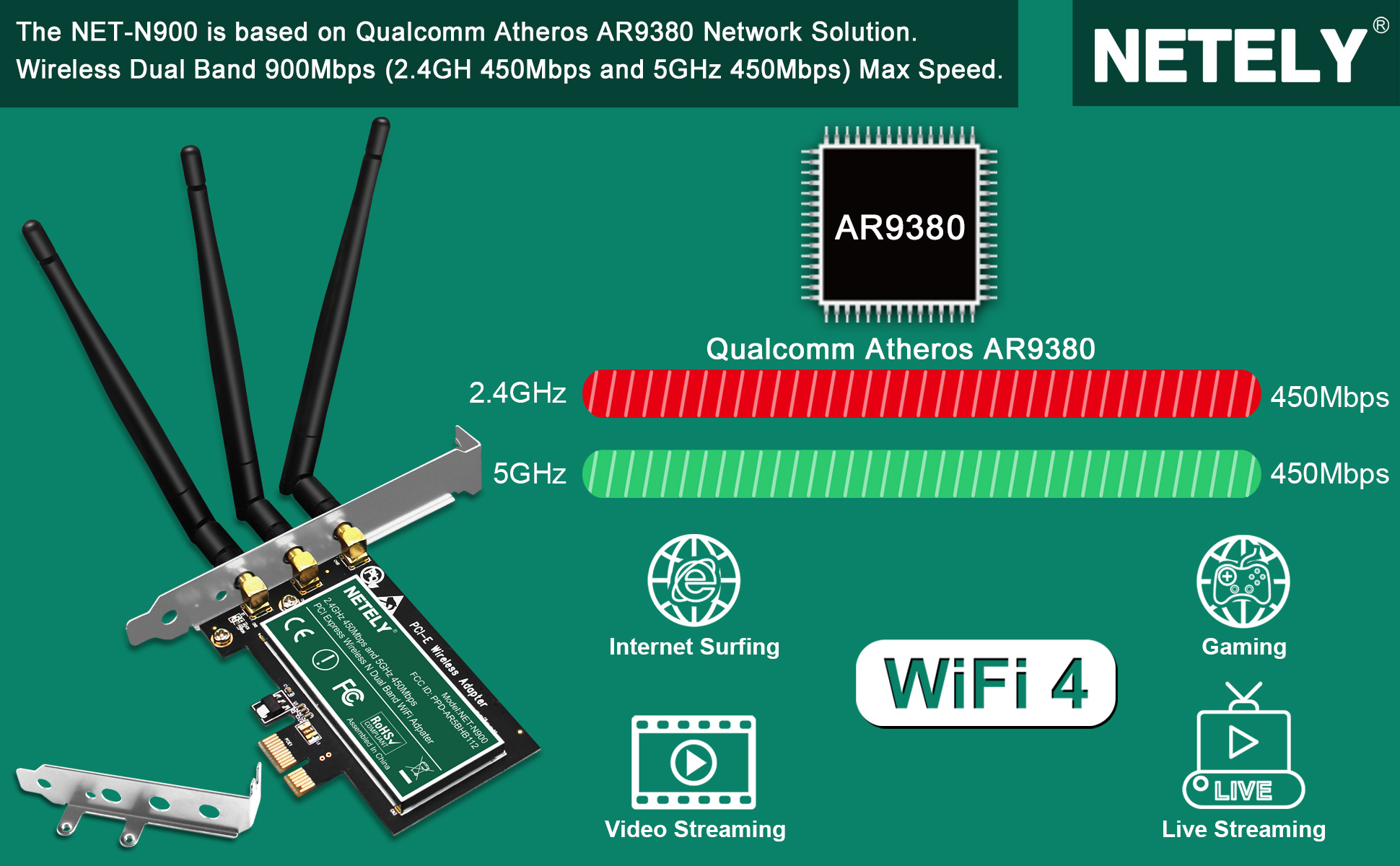

1. Fully compliant with IEEE 802.11N WiFi 4 technology. Support 3X3 MIMO 450Mbps on 2.4GHz and 450Mbps on 5GHz.

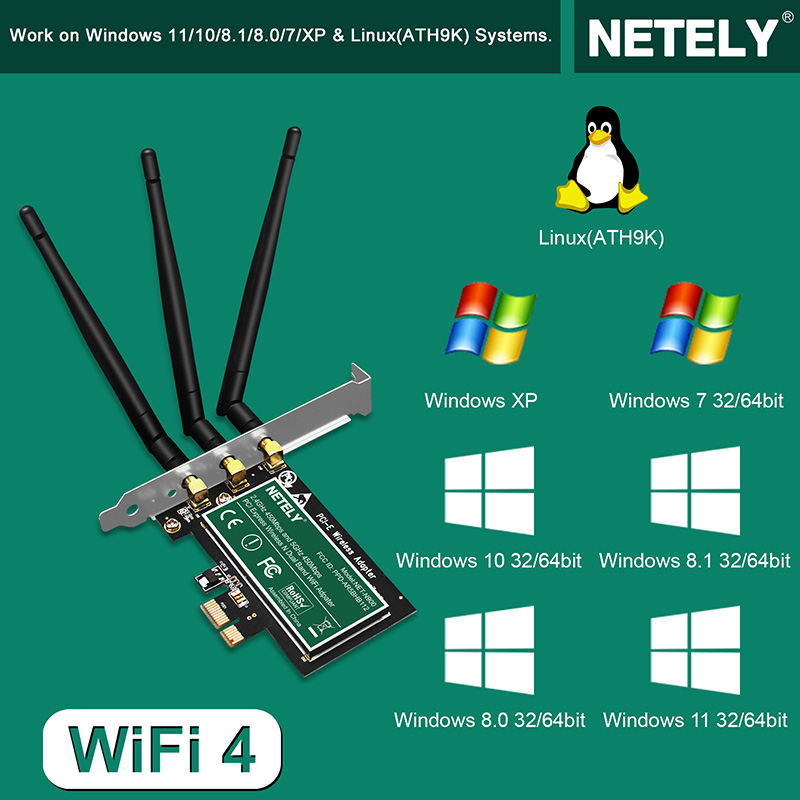

2. Plug and play on Windows 11, 10, 8.1, 8 (32/64bit). Windows Server, XP, 7 (32/64bit) need to install driver. Support Linux System: ATH9K Driver.

3. Full height bracket mounted on the WiFi card and low profile bracket packed in the package will work on full size and slim size PCs.

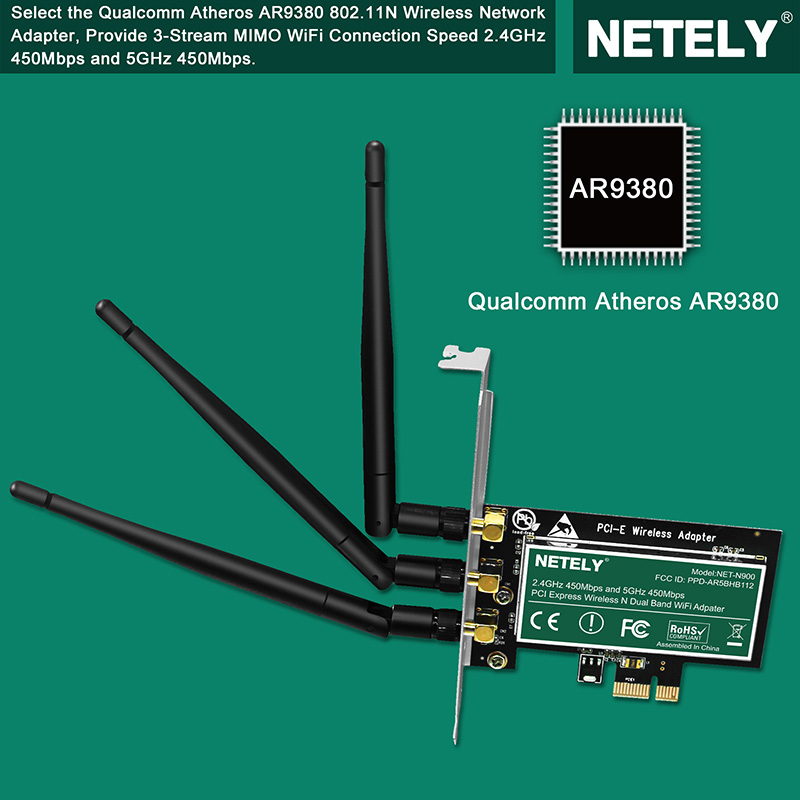

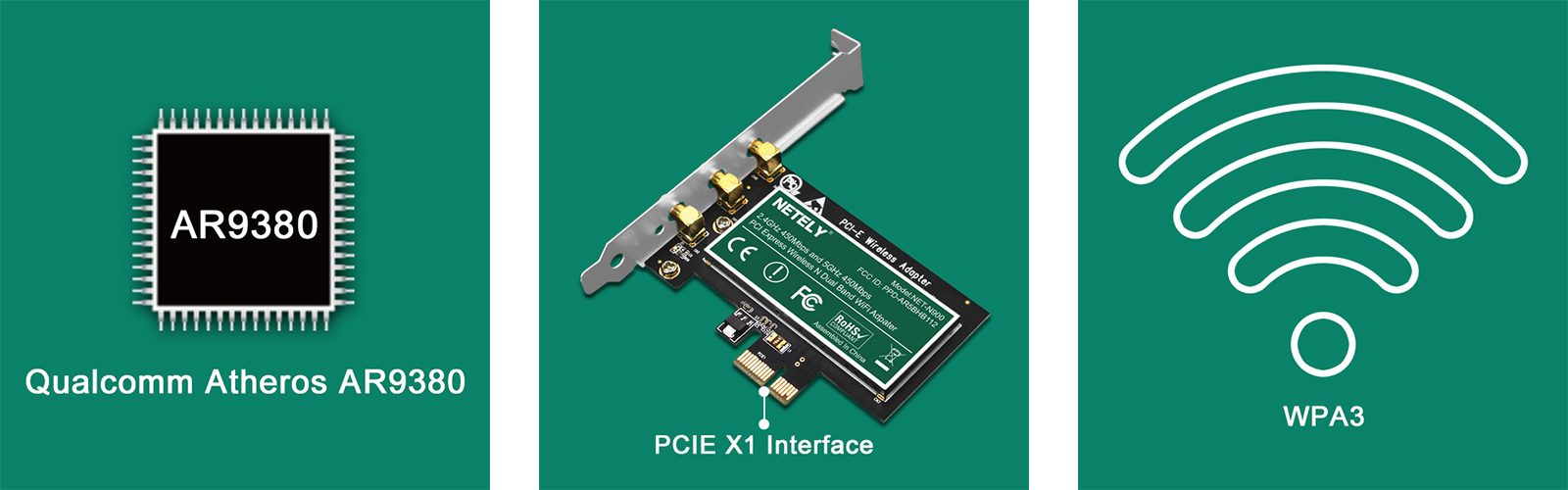

1. Selected the Qualcomm Atheros AR9380 network solution major-chip. Provide stronger signal and more excellent network stability than other solutions.

2. PCIe 2.0 X1 interface will be compatible with PCIe 1.0,2.0,3.0 and work on PCIe X1,X2,X4,X8,X16 slot PCs.

3. WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES) WiFi encryption will protect users' privacy and network-transmitted data against cyber-attacks.

NETELY NET-N900 is a wireless N Dual Band 3x3 MINO (3-Stream) High Performance PCI Express (PCI-E) Wi-Fi Adapter. Select by Qualcomm Atheros AR938X 3T3R MIMO platform high power Wi-Fi solution improve wireless connection stability. With added power amplifier on each antenna ports and 6dBi X3 external antennas make sure wireless networkreceiving(RX) or transmitting(TX) in great condition. PCs and Working Stations will get a 450Mbps max throughput speed on 2.4GHz and 5GHz in long range, few losses for video streaming, online Surfing, online gaming, VOIP calls etc.

Exact Technical Data:

1. Power consumption: Max 3.0 Watts.

2. Operating Channel: 2.4 GHz and 5GHz

3. Wireless Connection Speed: Max 450Mbps

4. Major Chip: Qualcomm Atheros AR938X Wireless Network Adapter

5. Transmit output: 18dBm X2(Per chain) +3dBi X2Antennas (Added on)

6. Network Privacy: Comply with WEP, WPA /WPA2/WPA-PSK/WPA2-PSK (TKIP/AES).

7. Wireless Standard: IEEE 802.11B/G/N, support IEEE 802.11 B//G/N/AC routers, APs, ISPs etc

8. Receive Sensitivity: HT40/MCS-7 -68 dBm/MCS-0 -82 dBm (Per chain) +3dBi X 2Antennas (Added on)

Hardware Requirements:

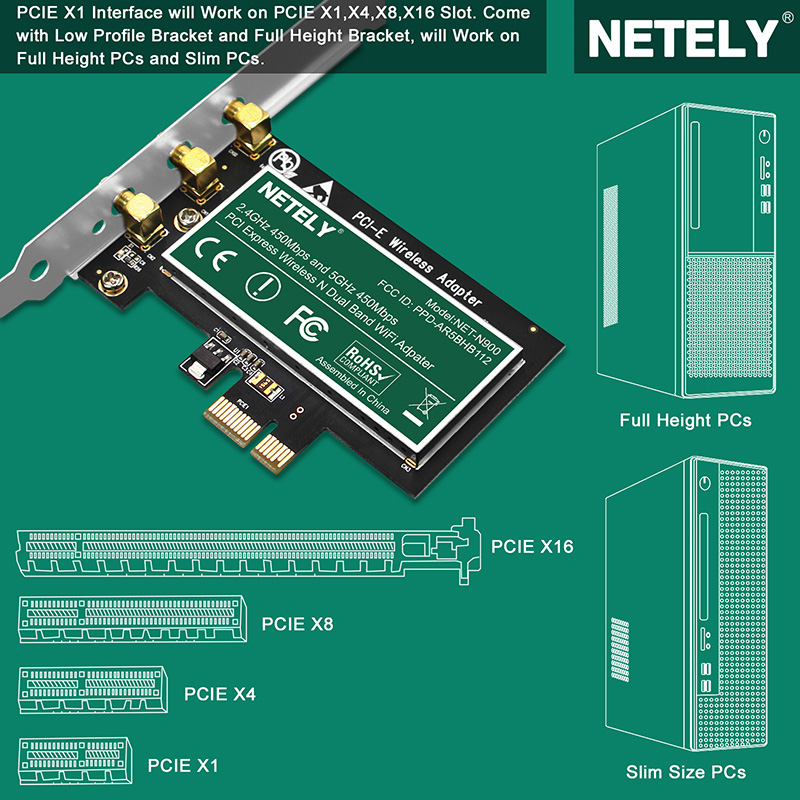

1. Low profile and Full height bracket inside ensure mini and standards size PCs working.

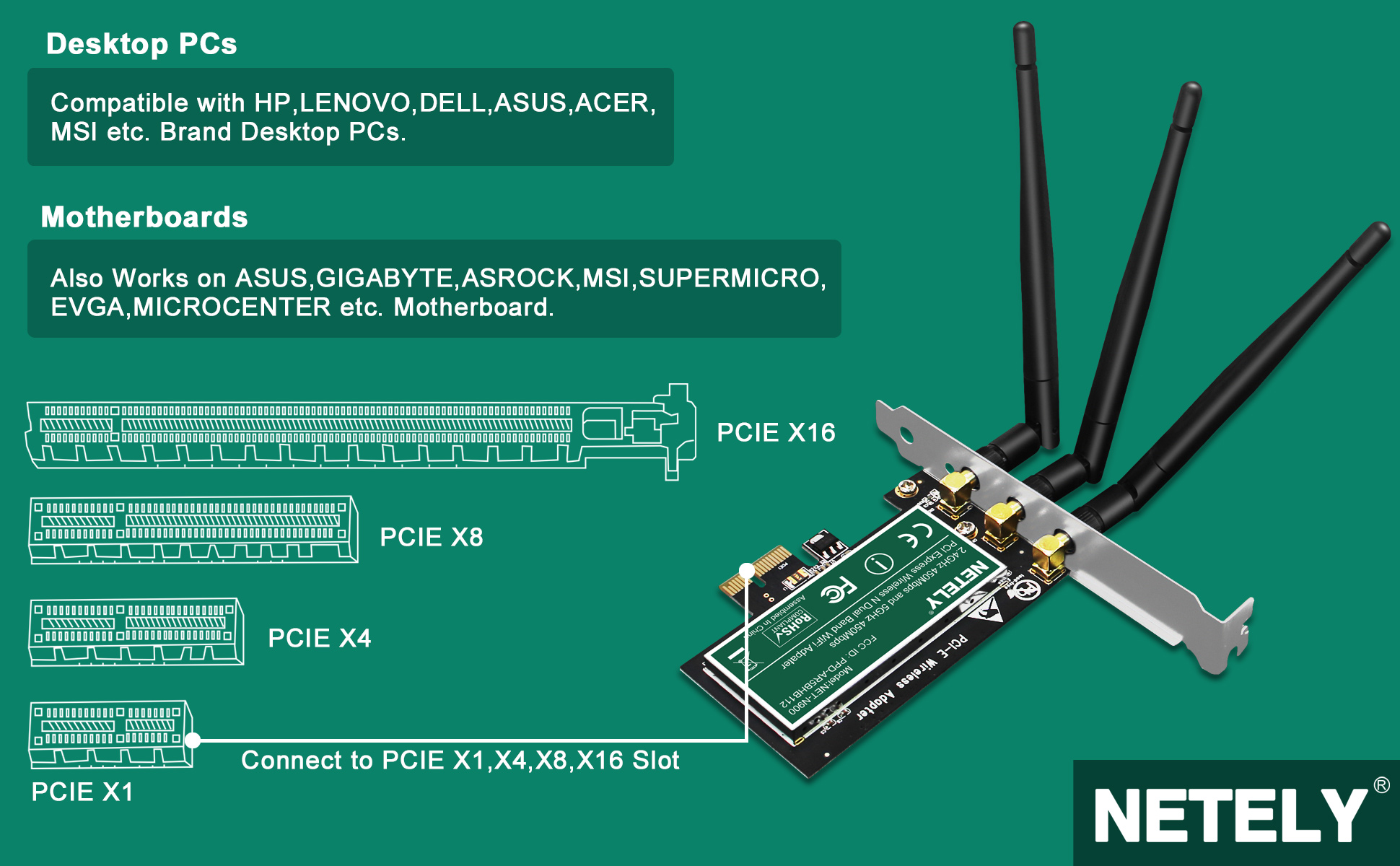

2. PCI-Express 2.0 X1 interface design works on PCI-Express 1.X/2.X/3.X standard, X1/X4/X8/X16 slot

Supported System:

1. Linux System:ATH9K Driver

2. Windows 10,Windows 8.1,Windows 8 (32/64bit) no need to install driver.

3. Windows Server/Windows XP/Windows 7 (32/64bits) need to install driver.

Package List: Mini CDX1, NET-N900 X1, Instructions X1, 6dBi Antenna X3, Mounting Screw X1, Low profile bracket X1
