NET-N600

Buy at Amazon
Cooperation

NET-N600

Model: NET-N600

Manufacture: NETELY INC

Compatible Devices: Desktop

Connector Interface: PCIe 2.0 X1

Wi-Fi Standard: IEEE 802.11a/b/g/n

Wi-Fi Speed: 2.4GHz 2X2 MIMO 300Mbps & 5GHz 300Mbps

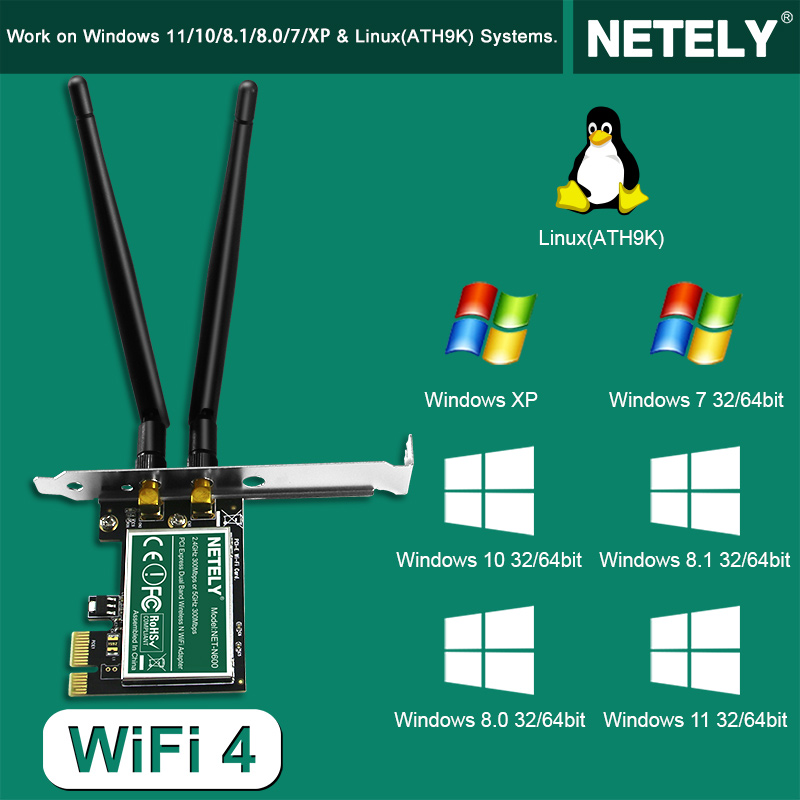

Compatible System: 1. Windows 11, 10, 8.1, 8(32/64bit) Plug and Play.

Windows Server, Windows XP, Windows 7 (32/64bit) need to install driver in mini CD.

2. Linux System: ATH9K driver.


NETELY Wireless N Dual Band N600 2-Stream PCI-E Wi-Fi Adapter for PCs or Server-PCIE Wi-Fi Card-PCIE Wi-Fi Adapter-Qualcomm Atheros Wireless Network Adapter (NET-N600)

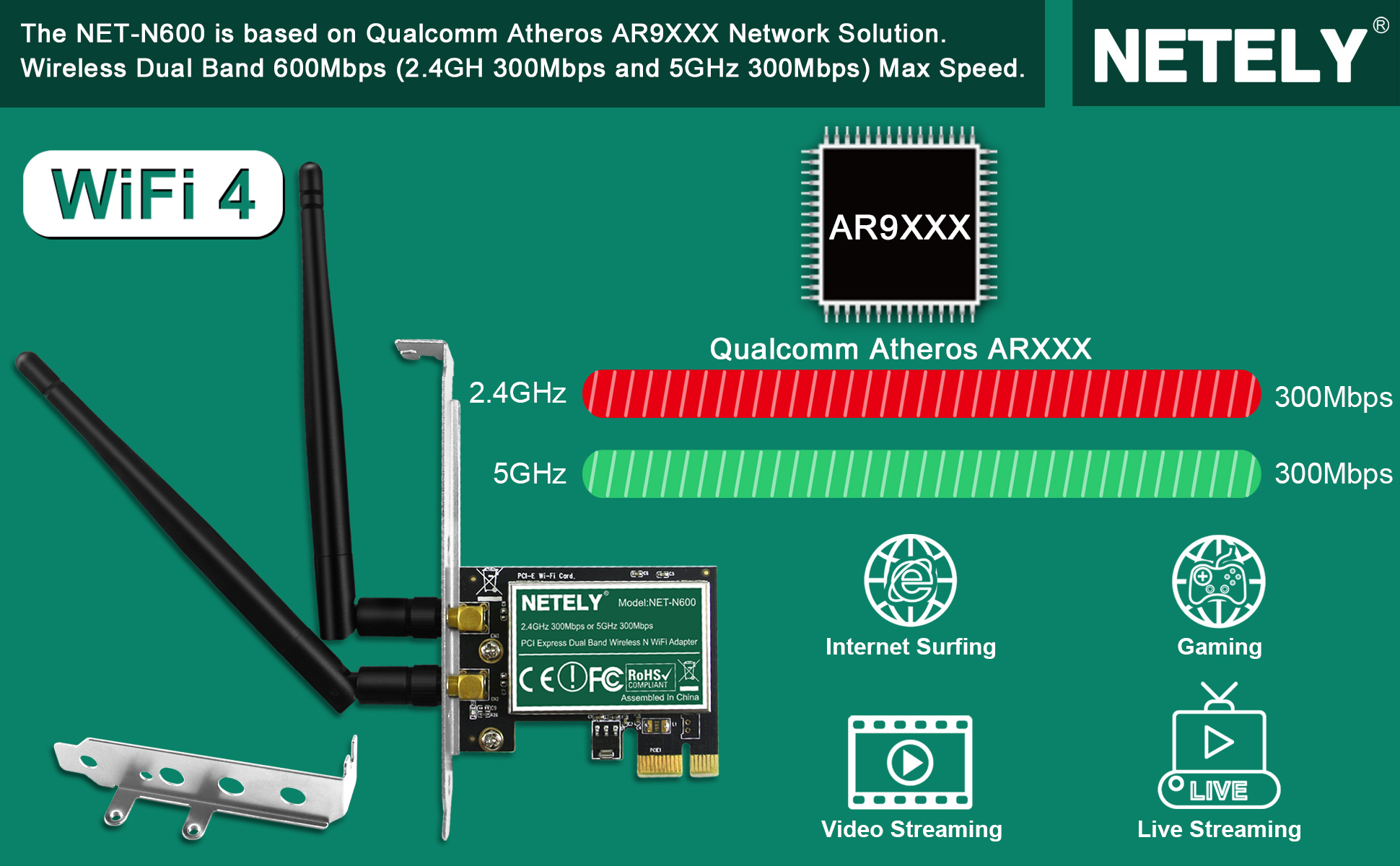

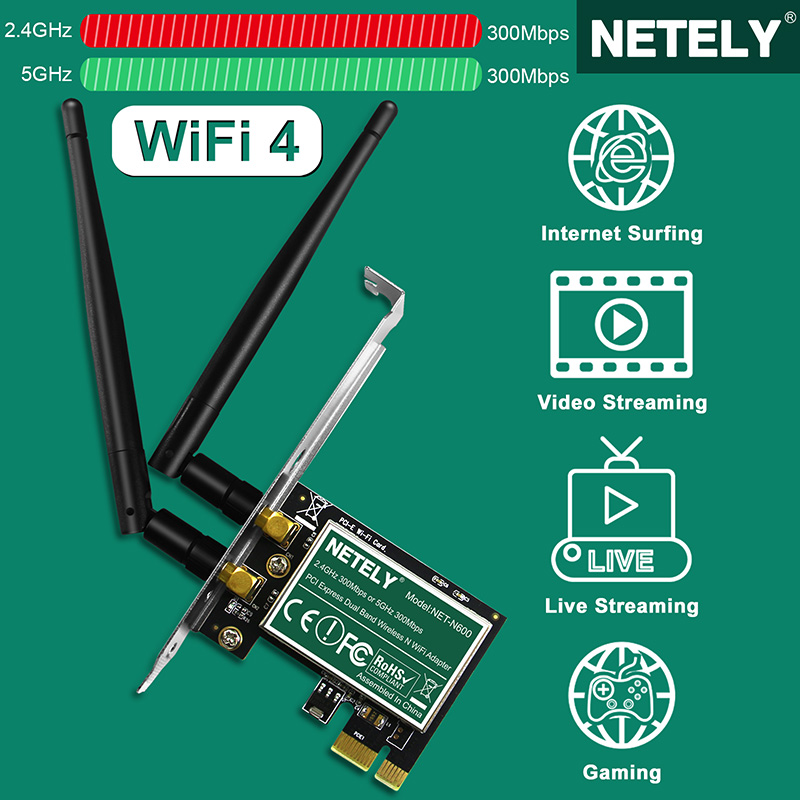

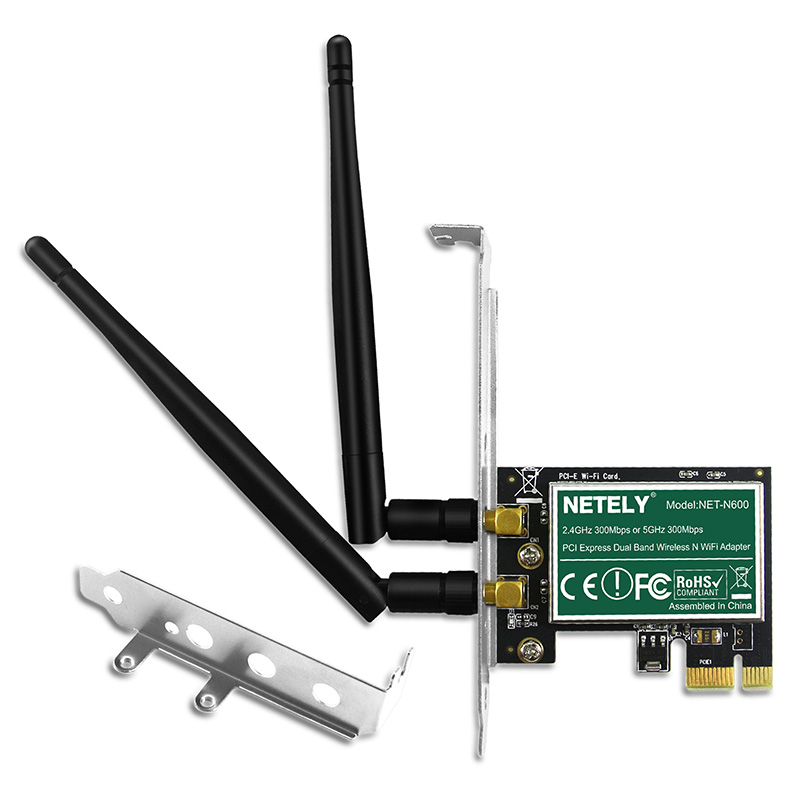

NETELY NET-N600 is a wireless N Dual Band 2x2 MIMO PCI Express (PCI-E) Wi-Fi Adapter. It is selected by Qualcomm Atheros AR938X 2T2R MIMO platform high power Wi-Fi solution to improve wireless connection stability. With added power amplifier on each antenna chain and 3dBi X2 external antennas make sure wireless network receiving(RX) or transmitting(TX) in great condition. The working PCs and Servers will get a 300Mbps max speed on 2.4GHz or 5GHz in long range for video streaming, online gaming, VOIP calls etc.


Product Features:

1. The NET-N600 is a wireless N dual band 2x2MIMO PCIE Wi-Fi Adapter. It offers max 300Mbps data speed on 2.4GHz or 5GHz for wireless connection on desktop computers and servers. It is mainly used for home or office PCs online surfing, video streaming, online gaming, VOIP calls etc.

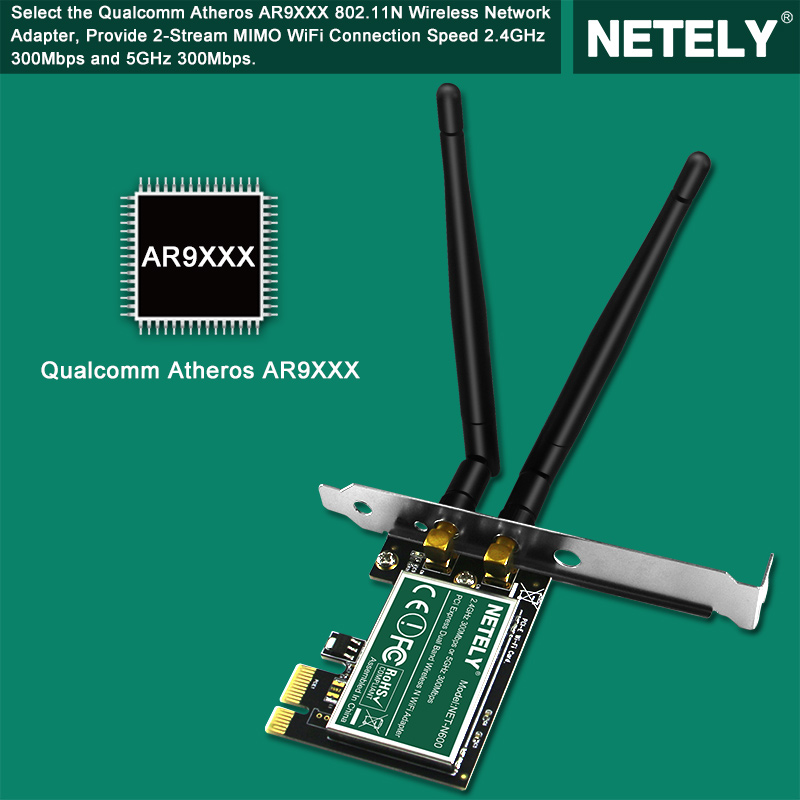

2. Selected Qualcomm Atheros AR938X 2T2R MIMO network solution. Added power amplifier on each antenna chain make sure TX and RX works in long range and high speed. The external 3dBi X2 antennas will enhance the network reception quality.

3. Compatible Systems: Windows 11, Windows 10, Windows 8.1, Windows 8 (32/64bit) Plug and Play. Windows Server, Windows XP, Windows 7 (32/64bit) need to install driver in mini CD. Linux System: ATH9K driver.

4. Seamless connect to IEEE 802.11 A/B/G/N/AC/AX wireless network Router, AP, ISP etc. Comply with WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES) WiFi encryption.

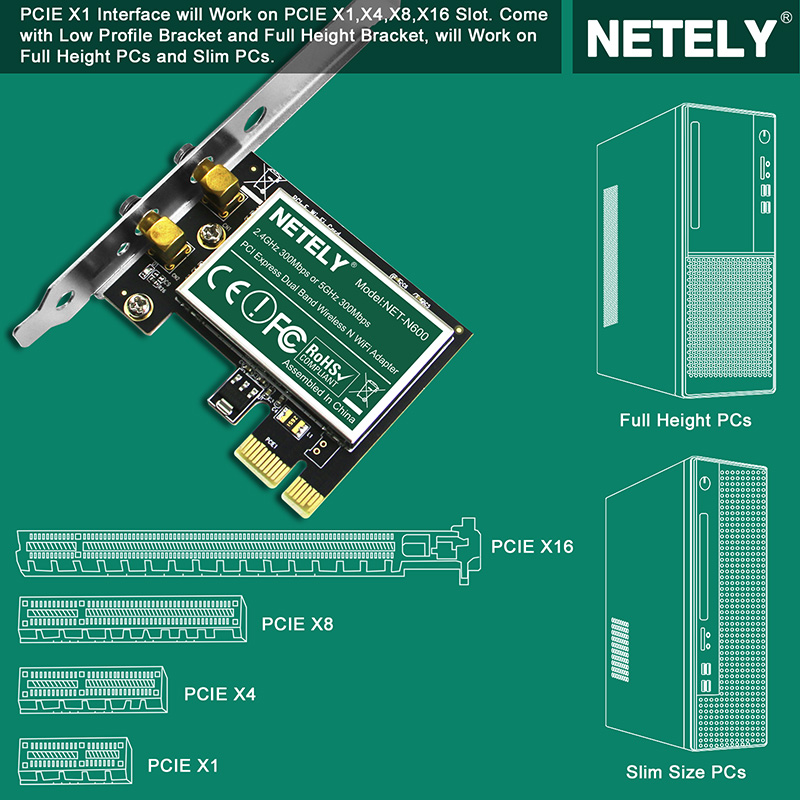

5. Mounted full height bracket, works on full size PCs. Comes with slim size bracket in the package, slim PC users need to change it to low profile bracket.

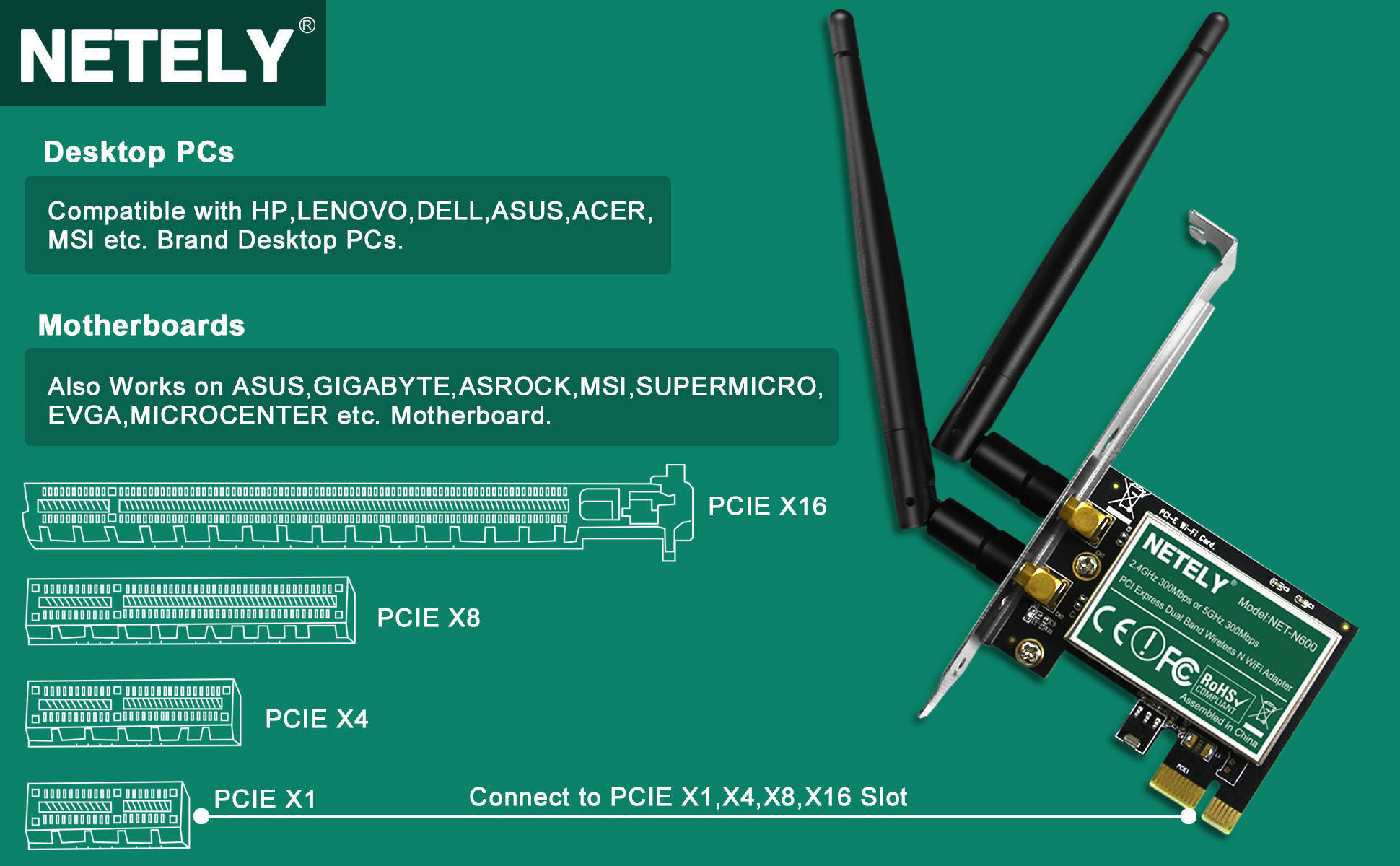

6. Designed on PCIE 2.0 X1 interface, will seamless compatible with PCI-E 1.0, 2.0, 3.0 standard, on PCIE X1/X4/X8/X16 slot.

Technical Specifications:

1. Fully compliant with IEEE 802.11N WiFi 4 technology. Support 2X2 MIMO 300Mbps on 2.4GHz and 300Mbps on 5GHz.

2. Plug and Play on Windows 11, 10, 8.1, 8 (32/64bit). Windows Server, XP, 7 (32/64bit) need to install driver. Linux Systems support ATH9K driver.

3. Mounted full height bracket, works on full size PCs. Comes with slim size bracket in the package, slim PC users need to change it to low profile bracket.

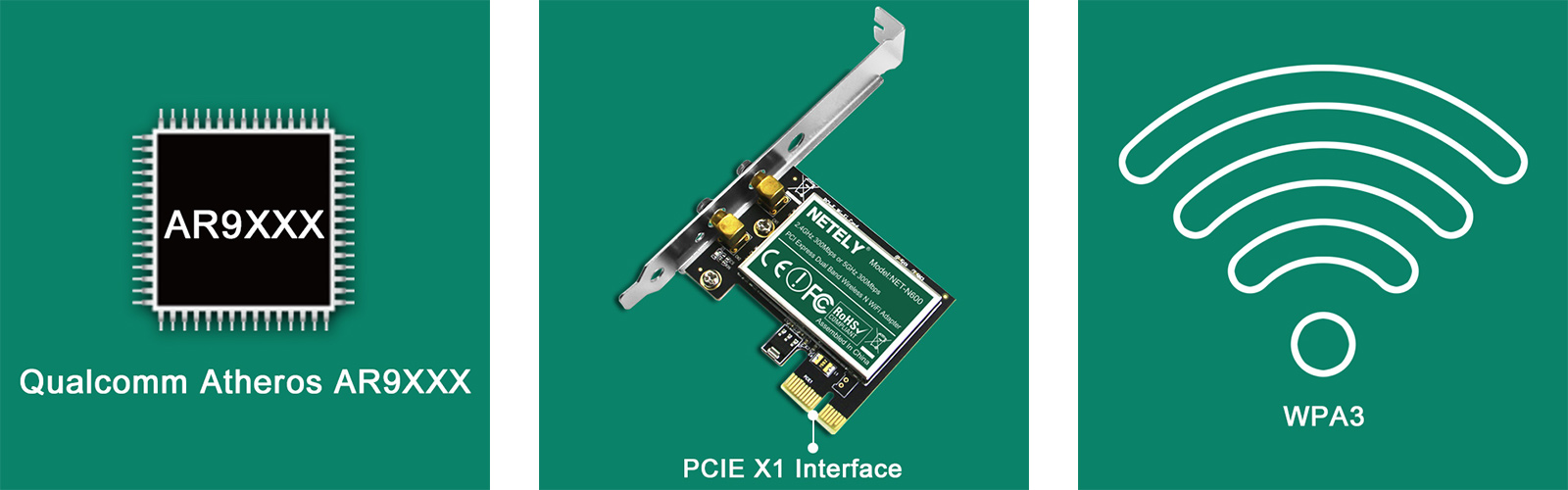

1. Selected Qualcomm Atheros AR938X network solution major-chip will provide stronger signal and more excellent network stability than other solutions.

2. Designed on PCIE 2.0 X1 interface, will seamless compatible with PCI-E 1.0, 2.0, 3.0 standard, on PCIE X1/X4/X8/X16 slot.

3. WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES) WiFi encryption will protect users' privacy and network-transmitted data against cyber-attacks.

NETELY NET-N600 is a wireless N Dual Band 2x2 MIMO PCI Express (PCI-E) Wi-Fi Adapter. It is selected by Qualcomm Atheros AR938X 2T2R MIMO platform high power Wi-Fi solution to improve wireless connection stability. With added power amplifier on each antenna chain and 3dBi X2 external antennas make sure wireless network receiving(RX) or transmitting(TX) in great condition. The working PCs and Servers will get a 300Mbps max speed on 2.4GHz or 5GHz in long range for video streaming, online gaming, VOIP calls etc.

Technical Data:

1. Power consumption: Max 3.0Watts.

2. Operating channel: 2.4GHz and 5GHz

3. Wireless connection Speed: Max 600Mbps

4. Major-chip: Qualcomm Atheros AR938X Wireless Network Adapter

5. Transmit output : 18dBm X2(Per chain) +3dBi X2Antennas (Added on)

6. Network privacy: Comply with WEP, WPA /WPA2/WPA-PSK/WPA2-PSK (TKIP/AES)

7. Wireless standard: IEEE 802.11B/G/N, support IEEE 802.11 B/G/N/AC routers, APs, ISPs etc

8. Receive sensitivity: HT40/MCS-7 -68 dBm/MCS-0 -82 dBm(Per chain) +3dBi X2Antennas(Added on)

Hardware Requirements:

1. Low profile and Full height bracket inside ensure it works on slim and standards size PCs or Servers.

2. PCI-Express 2.0 X1 interface design will work on PCI-Express 1.X/2.X/3.X standard, X1/X4/X8/X16 slot

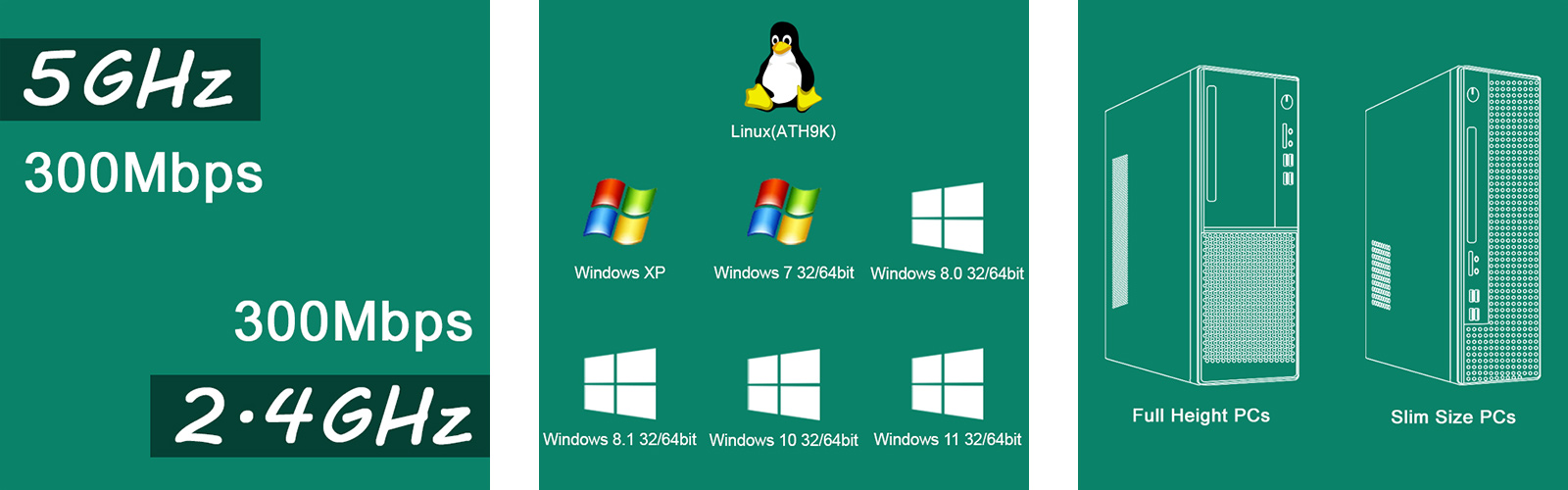

Supported System:

1. Linux System: ATH9K Driver

2. Windows 10, Windows 8.1, Windows 8 (32/64bit) no need to install driver

3. Windows Server, Windows XP, Windows 7(32/64bits)need to install driver

Package List: Mini CD X1, NET-N600 X1, User Manual X1, 3dBi Antenna X2, Mounting Screw X1, Low profile bracket X1
