NETELY IEEE 802.11AC WiFi 5 NGFF M2 Interface 600Mbps WiFi Bluetooth Adapter for Laptop PCs-NGFF M2 Wi-Fi Card with Bluetooth 4.2-OEM Lenovo FRU PN: 00JT477 (QCNFA435)

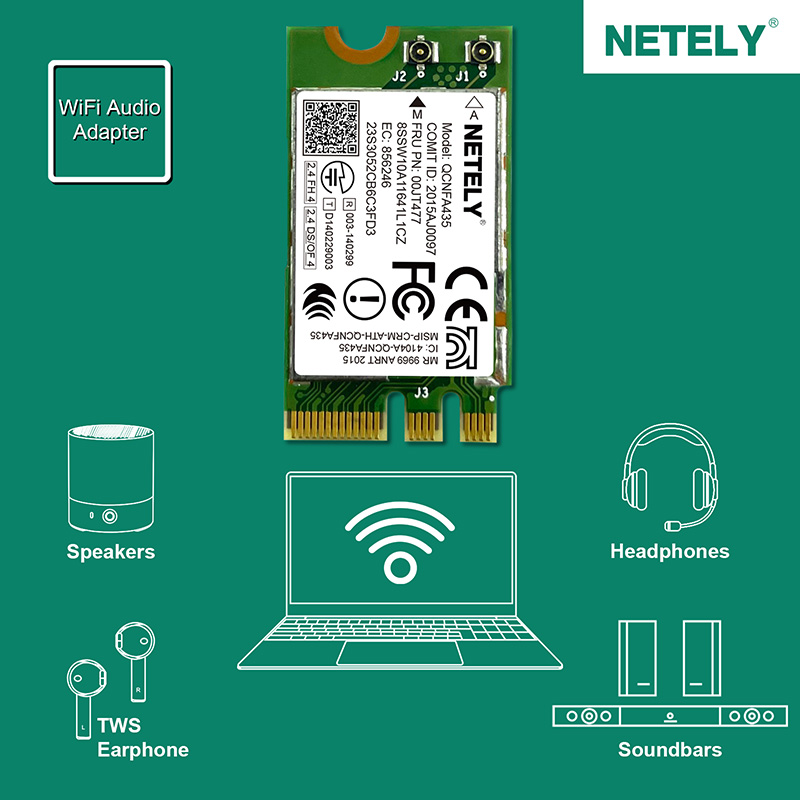

NETELY’s QCNFA435 is an NGFF M2 WiFi bluetooth adapter. It is based on Qualcomm Atheros QCA9377 network chipset. It is designed for laptop computers for internet surfing and bluetooth streaming. It will provide single wave wireless ac network connection, allow computers get 150Mbps on 2.4GHz and 5GHz 433Mbps for video source streaming, gaming, and office use. The bluetooth 4.2 is mainly used on wireless bluetooth device such as wireless headset, mouse, sound bars, keyboards. Build in advanced low power consumption technology to extend laptop battery working time.

Product Features:

1. QCNFA435 is an NGFF M2 interface WiFi bluetooth adapter. It will allow users add 802.11 AC WiFi 5 600Mbps speed WiFi on laptop PCs for online gaming, video streaming, internet surfing. It also comes with Bluetooth 4.2 with EDR for bluetooth headset, TWS earphones, soundbars, speaker’s audio source transmission.

2. Model: QCNFA435, WiFi standard: IEEE 802.11 a/b/g/n/ac, WiFi speed: 2.4GHz 150Mbps & 5GHz 433Mbps, Bluetooth version: Bluetooth 4.2, Form factors: NGFF M2 A-E Key, Package: NETELY's color box.

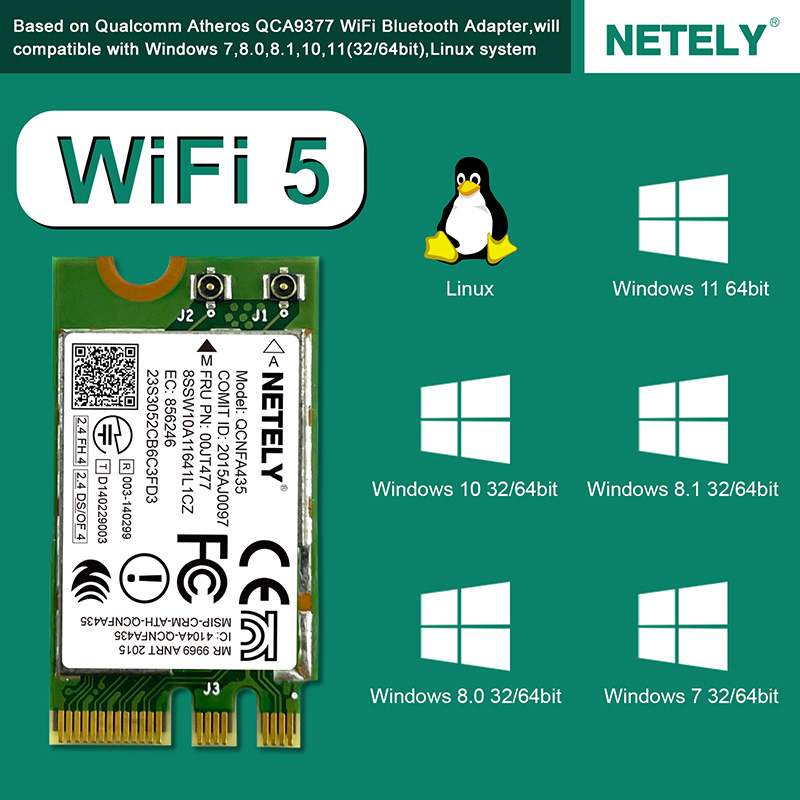

3. Compatible Systems: 1. Windows 8.0,8.1,10,11 (32/64bit) Plug and Play. Windows 7 (32/64bit) need download and install driver on running PCs. 2. Linux system supports ATH10K driver.

4. QCNFA435 based on Qualcomm Atheros QCA9377 network chipset, will support ARM, AMD, and INTEL platform. Compatible with almost all brand laptop PCs, such as ASUS, MSI, LENOVO, DELL, SONY, ACER, HASEE. Not for HP laptops.

5. QCNFA435 is an OEM LENOVO model FRU P/N: 00JT477, Supports E470, E570, E470C, E570C, E475, E575, YOGA 710, YOGA 720, YOGA 910, YOGA 920, Y520, V310, V410. LENOVO's NGFF M2 interface laptop PCs.

Technical Specifications:

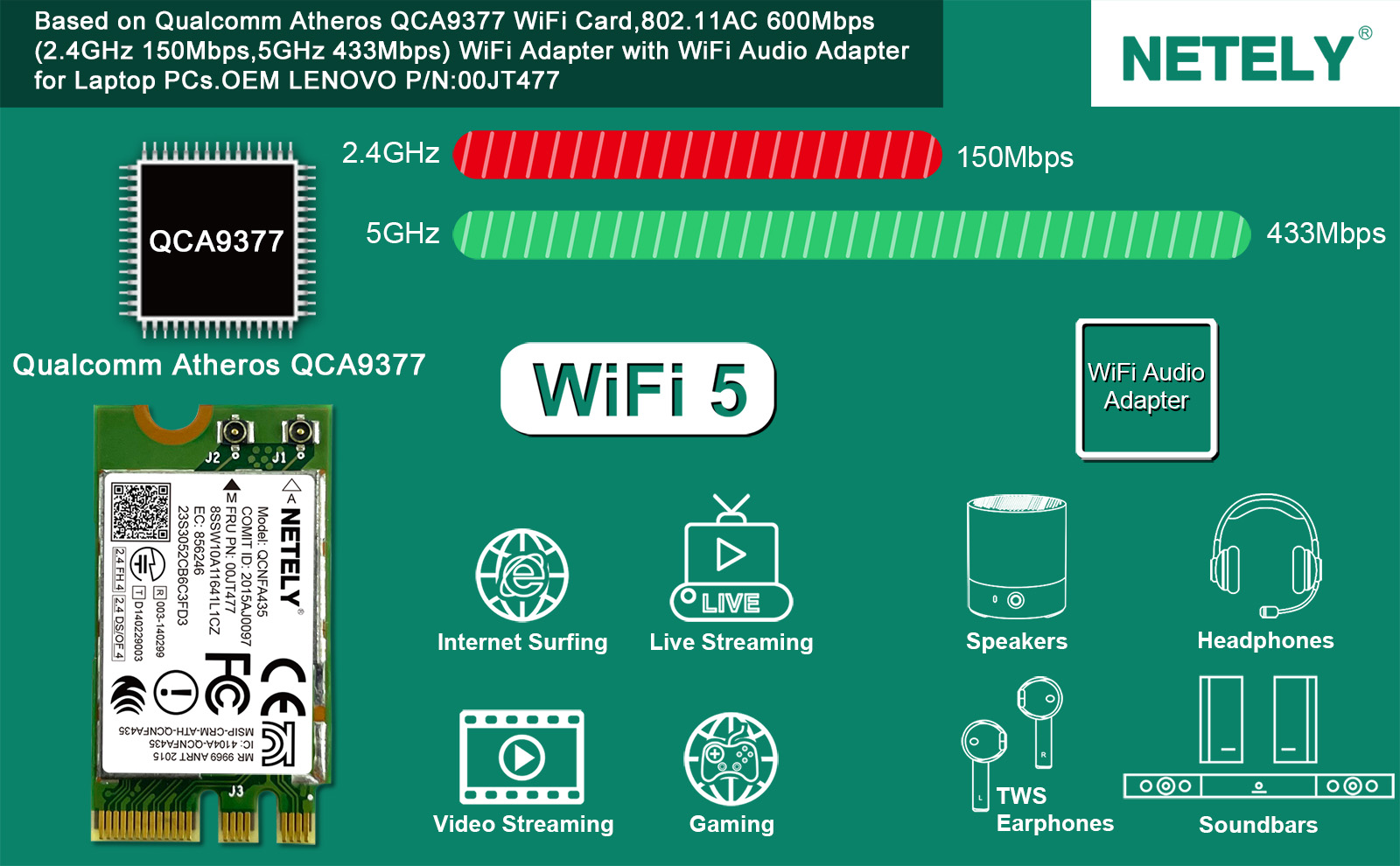

1. WiFi standard: IEEE 802.11 a/b/g/n/ac, Max WiFi speed: 600Mbps (Dual band 2.4GHz 150Mbps and 5GHz 433Mbps)

2. Compatible System: Windows 11/10/8.1/8.0 (32/64bit) Plug and Play. Windows 7 (32/64bit) need download and install drivers. Linux system supports ATH10K driver.

3. Compatible with most brand laptops, such as LENOVO, DELL, ASUS, MSI, SONY, ACER, HASEE. Not for HP laptops.

1. Based on Qualcomm Atheros QCA9377 chipset, providing excellent signal performance for home and office PCs.

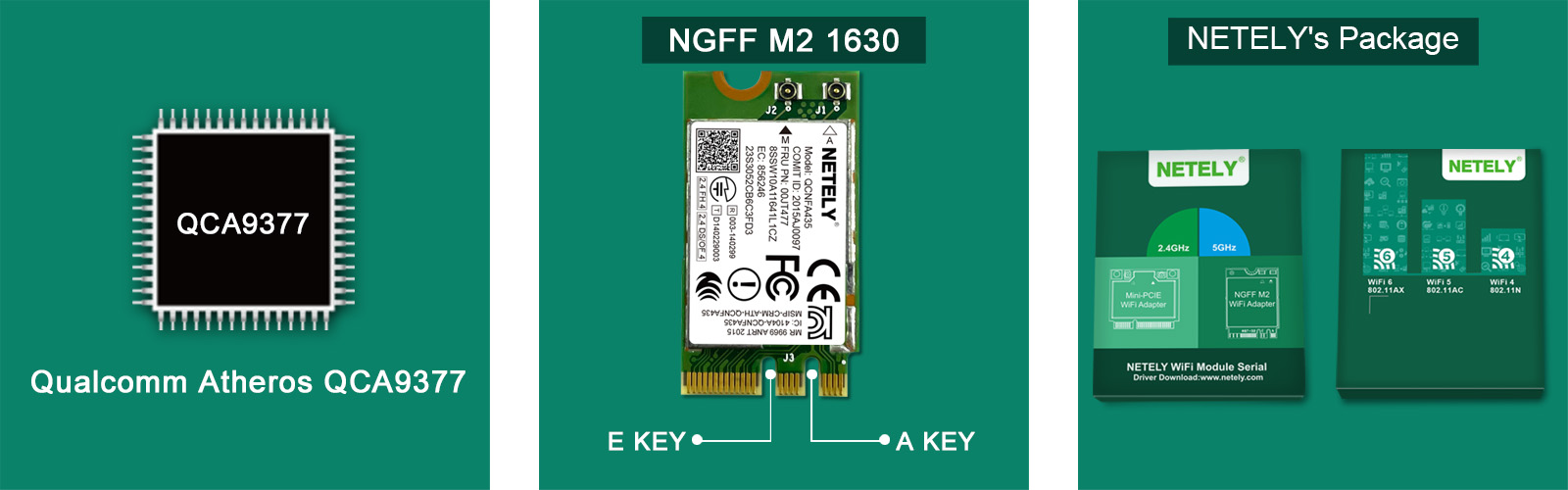

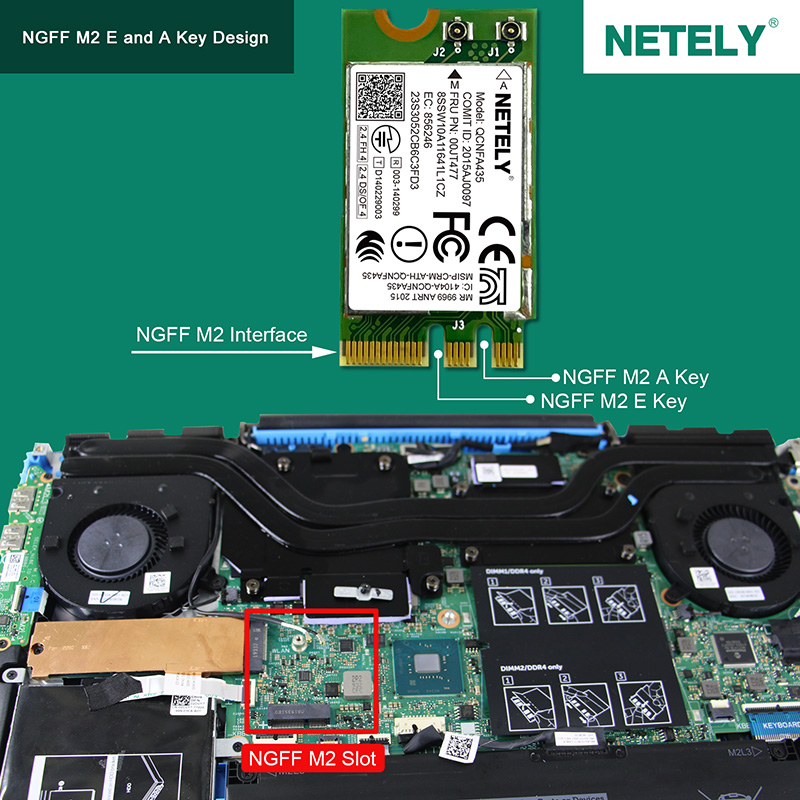

2. Connector Interface: NGFF M2 E/A key interface design will be compatible with most laptop computers produced after 2015.

3. Package List: 1X QCNFA435 WiFi Module, 1X Mounting Screw, 1X Antenna Protector.

NETELY’s QCNFA435 is an NGFF M2 WiFi bluetooth adapter. It is based on Qualcomm Atheros QCA9377 network chipset. It is designed for laptop computers for internet surfing and bluetooth streaming. It will provide single wave wireless ac network connection, allow computers get 150Mbps on 2.4GHz and 5GHz 433Mbps for video source streaming, gaming, and office use. The bluetooth 4.2 is mainly used on wireless bluetooth device such as wireless headset, mouse, sound bars, keyboards. Build in advanced low power consumption technology to extend laptop battery working time.

Tech Specs:

1. Model: QCNFA435

2. WiFi Standard: IEEE 802.11AC WiFi 5

3. Hardware Interface: NGFF M2 A-E Key

4. Major Chipset: Qualcomm Atheros QCA9377

5. Bluetooth Version: Bluetooth 4.2 with EDR

6. Target Users: Laptop PCs or industrial devices

7. Peak Speed: 2.4GHz 150Mbps & 5GHz 433Mbps

8. WiFi Encryption: 64bit and 128-bit WEP, AES-CCMP and TKIP

Compatible System:

1. Windows 10,11 (32/64bit) Plug and Play. Windows 8, Windows 8.1, Windows 7 (32/64bit) need download and install driver on running PCs.

2. Linux system supports ATH10K driver.

Compatible PCs:

1. Compatible with almost all brand laptop PCs with NGFF M2 network interface, such as ASUS, MSI, LENOVO, DELL, SONY, ACER, HASEE. Not for HP laptops.

2. QCNFA435 is OEM LENOVO FRU P/N: 00JT477, Supports E470, E570, E470C, E570C, E475, E575, YOGA 710, YOGA 720, YOGA 910, YOGA 920, Y520, V310, V410. LENOVO’s NGFF M2 interface laptop PCs.

Package List: 1X QCNFA435 1X Mounting Screw 1X Antenna Protector
