NETELY Wireless N 2.4GHz 450Mbps High Power PCIE Wi-Fi Card for Desktop PCs or Servers-Dual Mode PCIE WiFi Adapter-Qualcomm Atheros AR9590 Wireless Network Adapter (NET-N450A)

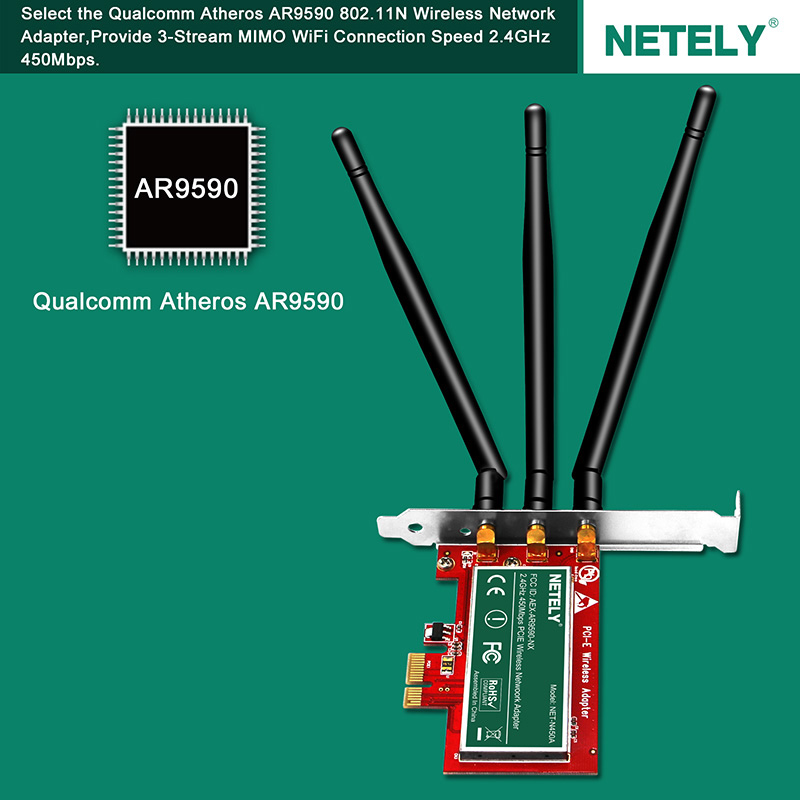

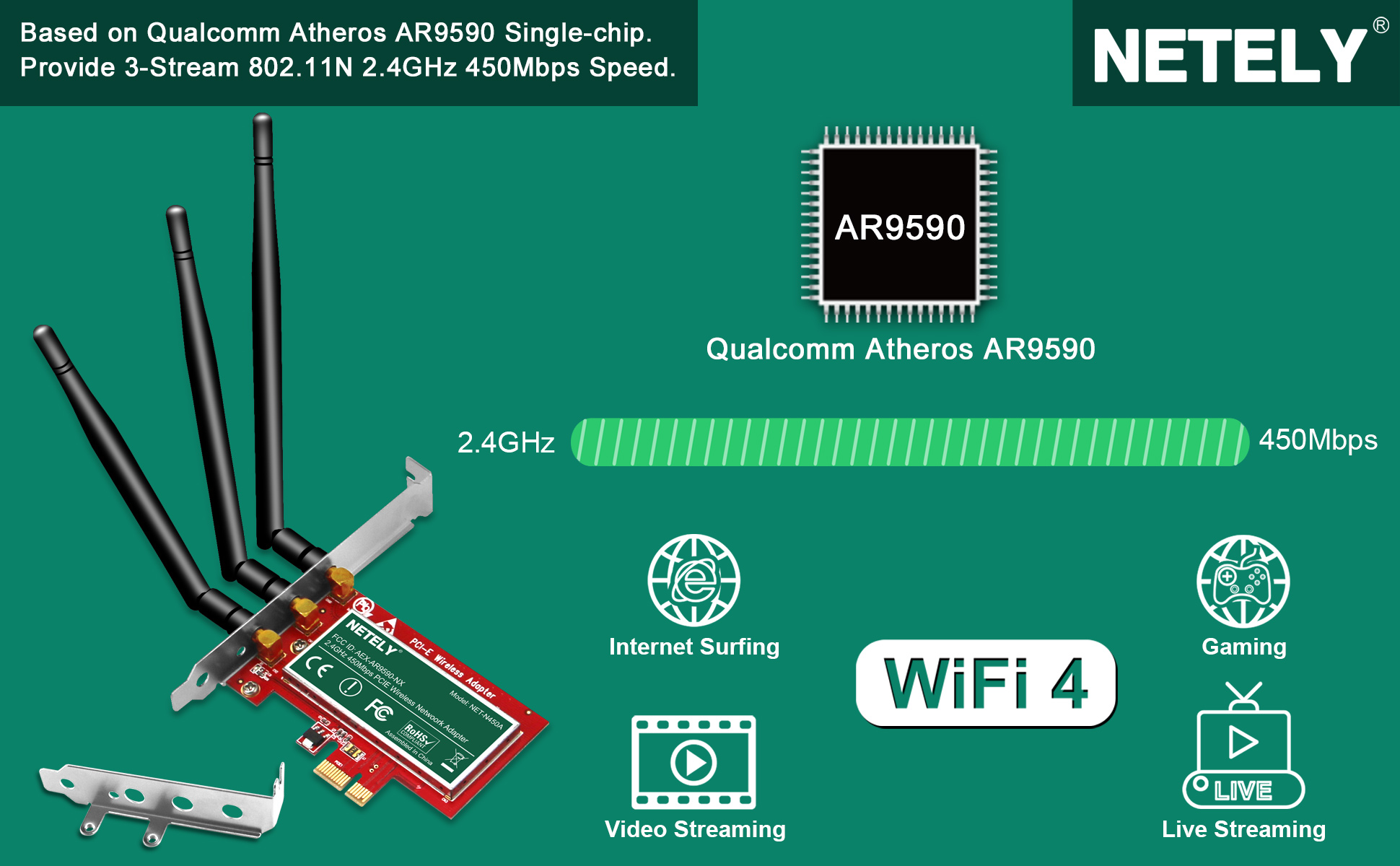

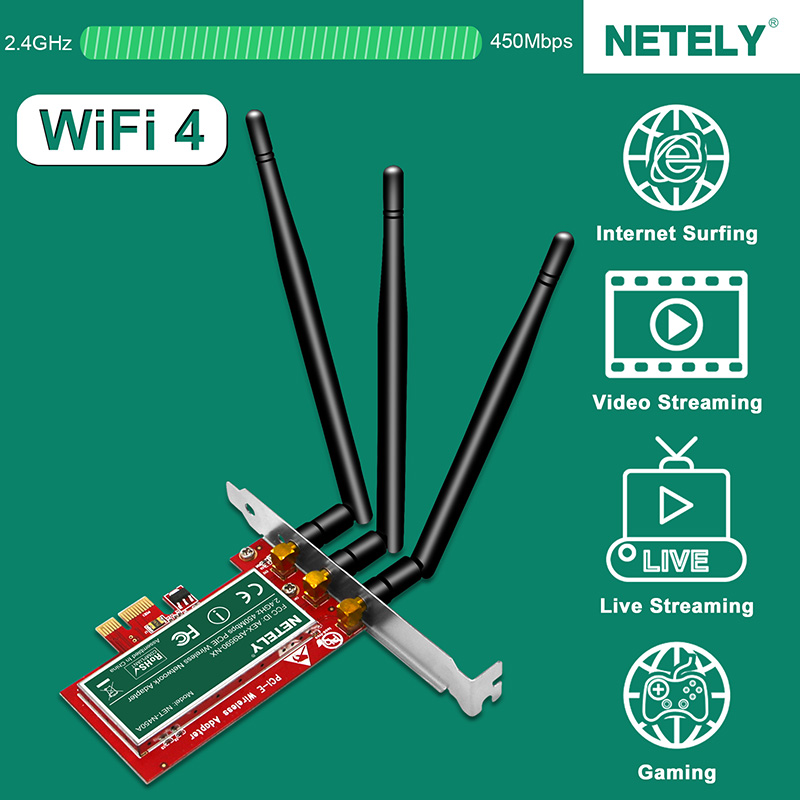

NETELY NET-N450A is a wireless N 3x3 MIMO high power PCIE Wi-Fi adapter. It was selected by Qualcomm Atheros AR9590 3T3R high power major-chipset. With added-on power amplifier each signal chain and 3dBi external antennas make sure wireless network receiving (RX) or transmitting (TX) in great condition. Will provide 450Mbps max WiFi speed for connected desktop PCs and Servers in long range, few losses for video streaming, online gaming, VOIP calls etc.

Product Features:

1. NET-N450A is a wireless N 3x3 MIMO high power PCIE Wi-Fi Adapter. It offers 450Mbps max data speed on 2.4GHz (40MHz) on desktop computers and servers for video streaming, online gaming, videos call.

2. It is based on Qualcomm Atheros AR9590 3T3R commercial level major-chip. Added power amplifier on each signal chain make sure TX and RX works in long range and high speed. Packed with 3dBi X3 antennas will make sure stable WiFi network reception.

3. WiFi Adapter Mode: Provide receive sensitivity: HT40/MCS-7 -68 dBm/MCS-0 -82 dBm and external 3dBi power per chain for signal receiving. Wireless AP Mode: Amplified 18dBm transmit output and external 3dBi power per chain for signal transmitting.

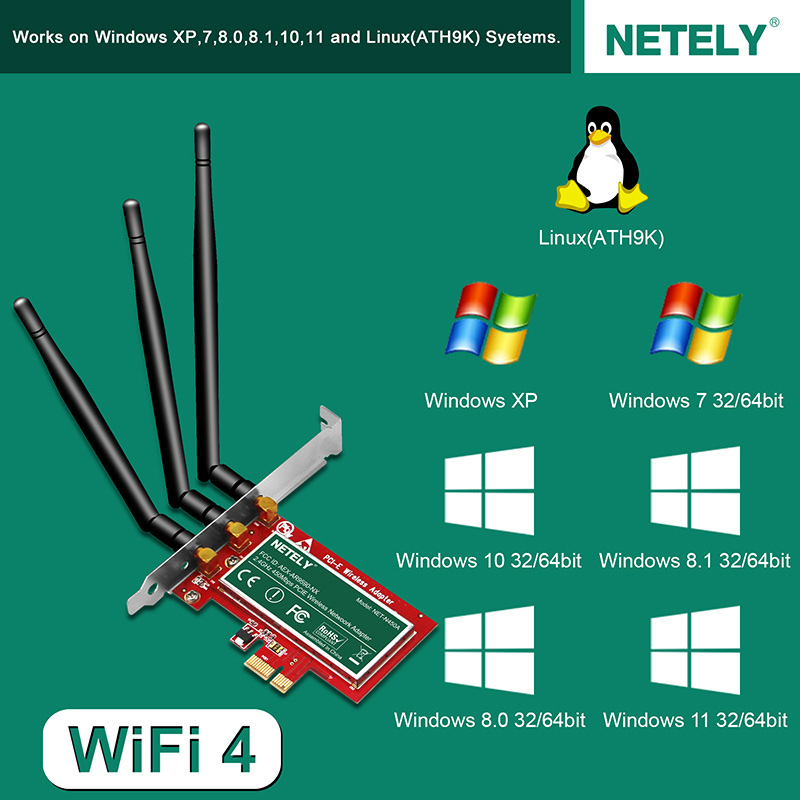

4. Compatible Systems: Windows 11, Windows 10, 8.1, 8 (32/64bit) and Windows server 2012, 2012R2, 2016, 2019, 2022 supports Plug and Play. Windows Server 2003, 2003R2, 2008, 2008R2 and Windows XP, 7(32/64bits) need to install driver. Linux supports ATH9K driver.

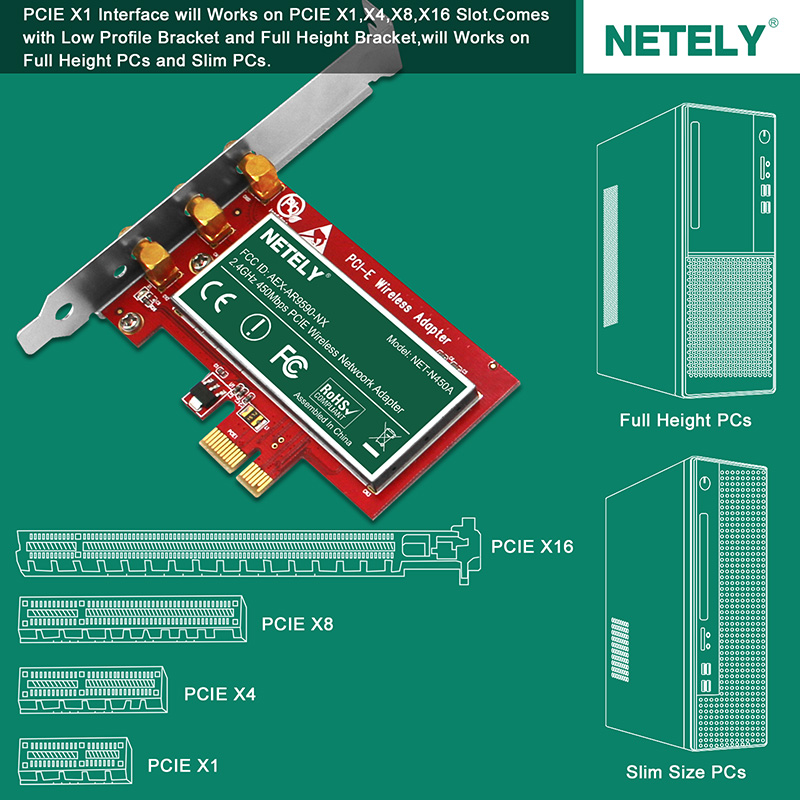

5. Designed on PCIE 2.0 X1 interface, works on PCI-E 1.x,2.x,3.x standard and X1, X2, X4, X8, X16 slot. Packed with low profile and full height bracket, supports full height PCs and slim PCs or Servers.

6. Fully support IEEE 802.11 b, g, n, ac, ax wireless router, AP, ISP etc. Comply with WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, TKIP, AES etc wireless network encryption.

Technical Specifications:

1. Fully compliant with IEEE 802.11N WiFi 4 technology. Support 3X3 MIMO 450Mbps on 2.4GHz.

2. Windows 11, 10, 8.1, 8 (32/64bit) and Windows server 2012, 2012R2, 2016, 2019, 2022 support Plug and Play.

Windows Server 2003, 2003R2, 2008, 2008R2 and Windows XP, 7(32/64bit) need to install driver. Linux Systems support ATH9K Driver.

3. The full height bracket mounted on the WiFi card and low profile bracket in the package will work on full size and slim size PCs.

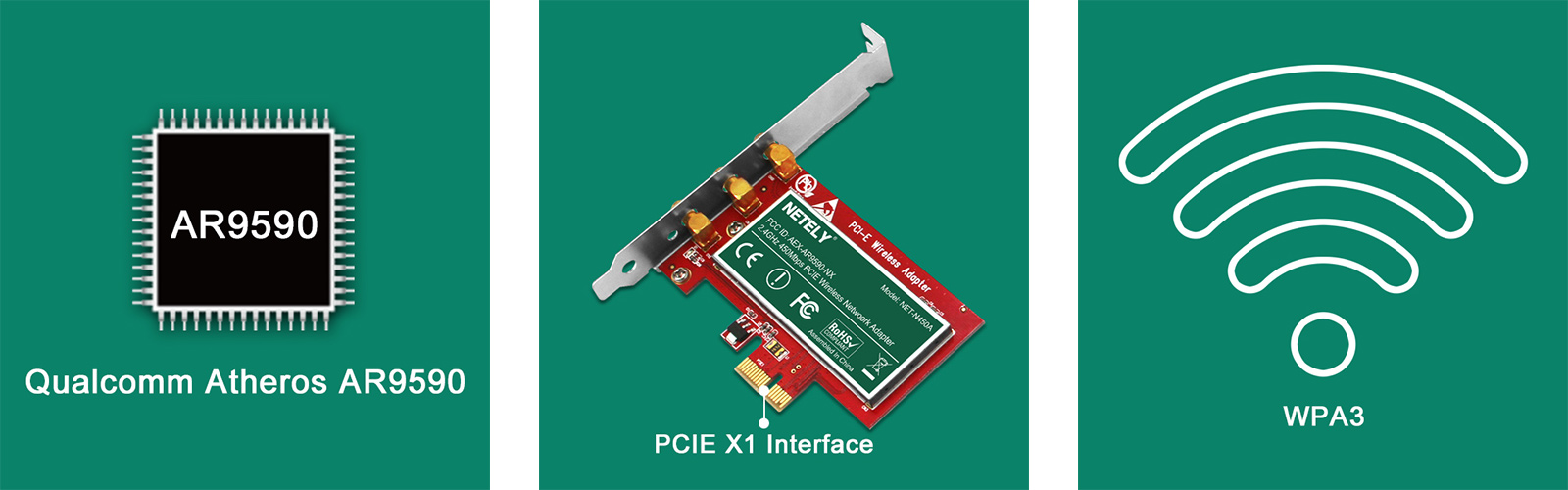

1. Select Qualcomm Atheros AR9590 network solution major-chip. Provide stronger signal and more excellent network stability than other solutions.

2. PCIe 2.0 X1 interface will be compatible with PCIe 1.0,2.0,3.0 and work on PCIe X1,X2,X4,X8,X16 slot PCs.

3. WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, TKIP, AES network encryption will protect users' privacy and network-transmitted data against cyber-attacks.

NETELY NET-N450A is a wireless N 3x3 MIMO high power PCIE Wi-Fi adapter. It was selected by Qualcomm Atheros AR9590 3T3R high power major-chipset. With added-on power amplifier each signal chain and 3dBi external antennas make sure wireless network receiving (RX) or transmitting (TX) in great condition. Will provide 450Mbps max WiFi speed for connected desktop PCs and Servers in long range, few losses for video streaming, online gaming, VOIP calls etc.

Technical Data:

1. Power consumption: Max 3.0Watts.

2. Operating Channel: 2.4.12 – 2.4835 GHz

3. Wireless Connection Speed: 450Mbps max

4. Transmit output: 18dBm X3(On board) and 3dBi X3 Antennas (Added on)

5. Network Privacy: Comply with WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, TKIP, AES

6. Wireless Standard: IEEE 802.11B, G, N, support IEEE 802.11 B, G, N, AC routers, APs, ISPs etc

7. Receive Sensitivity: HT40/MCS-7 -68 dBm/MCS-0 -82 dBm on board +6dBi X3 Antennas added-on

Compatible Hardware:

1. Low profile and Full height bracket inside ensure mini and standards size PCs.

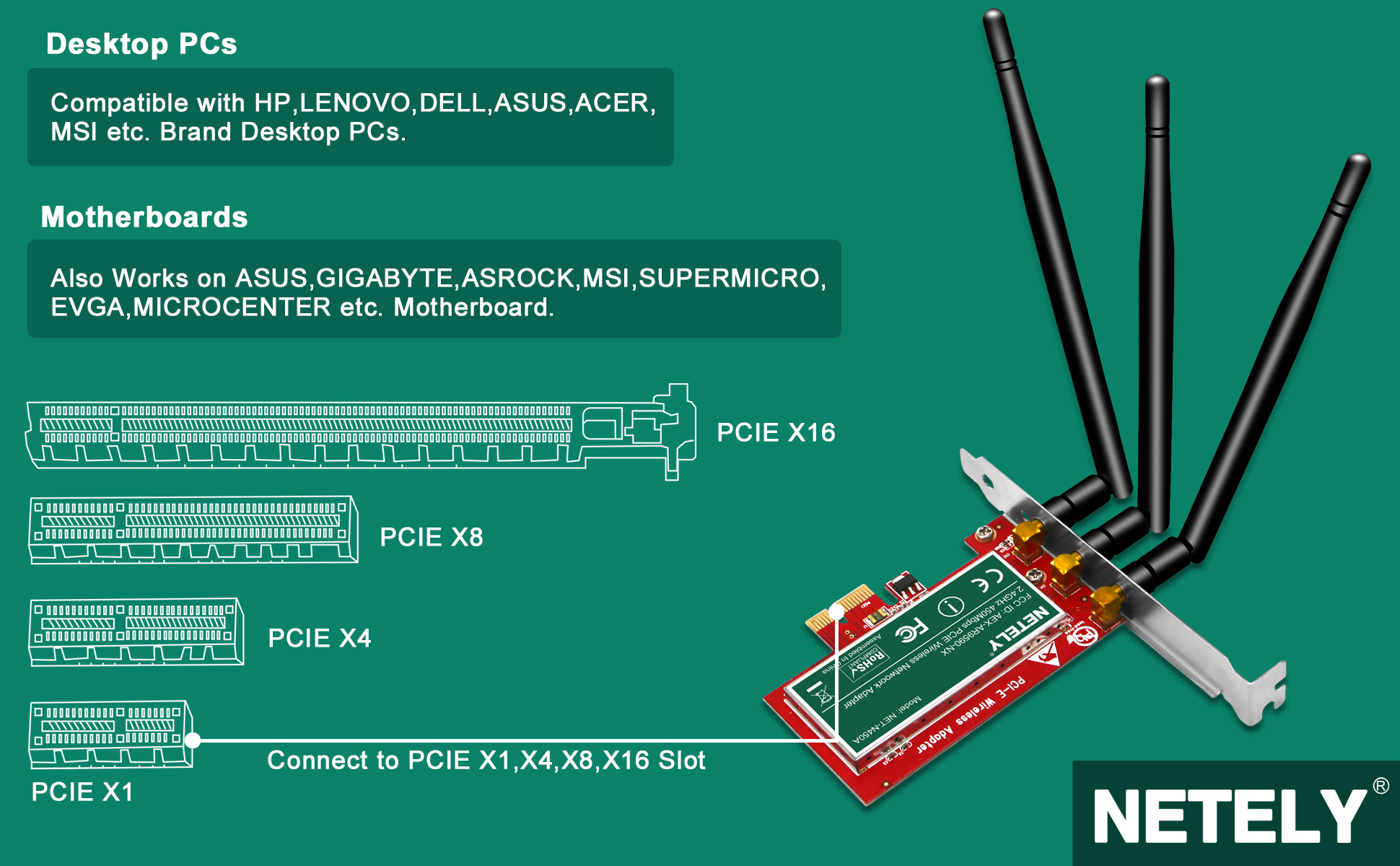

2. PCIE 2.0 X1 interface design works on PCIE 1.X, 2.X, 3.X standard and PCIE X1, X4, X8, X16 slot.

Supported System:

1. Linux System: ATH9K Driver

2. Windows 11, Windows 10, 8.1, 8 (32/64bit) and Windows server 2012, 2012R2, 2016, 2019, 2022 supports Plug and Play.

3. Windows Server 2003, 2003R2, 2008, 2008R2 and Windows XP, 7(32/64bits) need to install driver.

What’s in the box?

1X Mini CD 1X NET-450A 1X User Manual 3X 3dBi Antenna 1X Mounting Screw 1X Low profile bracket
